Part Number # AF80-30-00-13
SKU # 2339832
Image Disclaimers Message
Brand: ABB
AF80-30-00-13

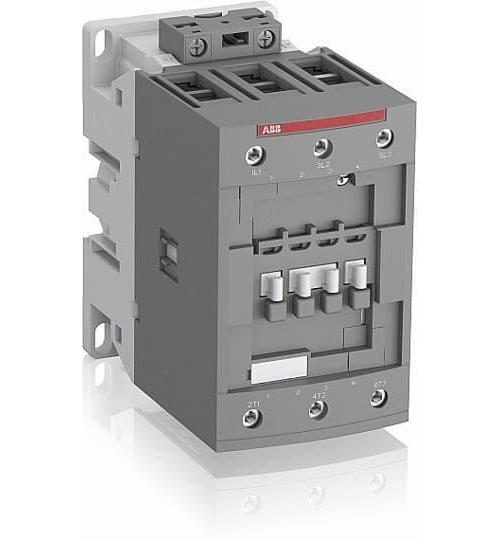

ABB AF80-30-00-13 IEC Contactor
Part Number # AF80-30-00-13
SKU # 2339832
$250.57 / Each
Typical price:$465.31 / Each
ABB AF80-30-00-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF80-30-00-13 |
| SKU #: | 2339832 |
| Coil Power Rating: | 37 kW, 60 hp, 75 hp |
| Coil Voltage: | 100 to 250, 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 125.5 mm H x 70 mm W x 116 mm D |
| Enclosure Type: | IP10/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -60 to 80, -60 to 80 deg C |
| Series: | A Series |
| Terminal Type: | Screw |
| Type: | AC/DC Operated |
| Connection type: | Double Connector |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523132931 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$250.57 / Each
Typical price:$465.31 / Each
Quantity:
- ABB, AF80-30-00-13, IEC Contactor, AC/DC Operated, Series: A Series, 100 to 250 V AC/DC Coil, 80 A Maximum Load Current, 37 kW, 60 hp, 75 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Double Connector Connection, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -60 to 80 deg C Operating, 125.5 mm H x 70 mm W x 116 mm D Dimensions
AF80-30-00-13 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDC, controlling single and three phase motors and switching power circuitsAF80-30-00-13 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 37 kW at 3-phase 400 V IEC, 60 hp at 440 to 480 VAC, 75 hp at 550 to 600 VAC
- 80 A at 220 to 240 VAC 3-phase UL/CSA
AF80-30-00-13 Standards
RoHS Compliant|IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-4-1|CSA 22.2 60947-4-1|cUL Listed|EAC ApprovedSKU #2339832Part Number #AF80-30-00-13UNSPSC39121529UPC03471523132931
