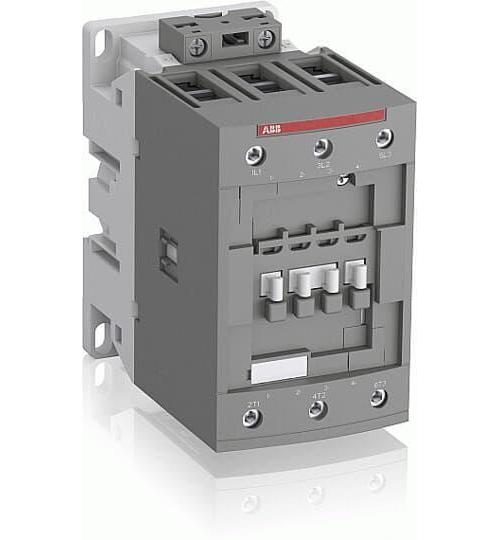

ABB AF96-30-00-12 IEC Contactor
Part Number # AF96-30-00-12
SKU # 2372775
$316.72 / Each
ABB AF96-30-00-12 Key Features
Brand: ABB
Part Number # AF96-30-00-12
SKU #2372775
Coil Power Rating: 45 kW, 60 hp, 75 hp
Coil Voltage: 48 to 130 VAC/VDC
Contact Configuration: 3NO
Dimensions: 125.5 mm H x 70 mm W x 116 mm D
Enclosure Type: IP10/IP20
Frequency Rating: 50/60 Hz
Number of Poles: 3
Operating Cycles: 10000000 Cycles
Operating Temperature: -40 to 70 deg C
Terminal Type: Screw
Type: AC/DC Operated
Connection type: Double Connector
Country of origin: FR
Manufacturer Name: ABB
UNSPSC: 39121529
UPC: 03471523133228
$316.72 / Each
- ABB, AF96-30-00-12, IEC Contactor, AC/DC Operated, 48 to 130 VAC/VDC Coil, 92 A Maximum Load Current, 45 kW, 60 hp, 75 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, Double Connector Connection, Screw Terminal, IP10/IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 125.5 mm H x 70 mm W x 116 mm D Dimensions
AF96-30-00-12 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDCAF96-30-00-12 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 45 kW at 3-phase 400 V IEC, 60 hp at 440 to 480 VAC, 75 hp at 550 to 600 VAC
- 92 A at 200 to 208 VAC 3-phase UL/CSA
AF96-30-00-12 Standards
IEC 60947-4-1|CSA 22.2 60947-4-1SKU #2372775Part Number #AF96-30-00-12UNSPSC39121529UPC03471523133228
