Part Number # AFC40-30-00-84
SKU # 2423256
Image Disclaimers Message
AFC40-30-00-84

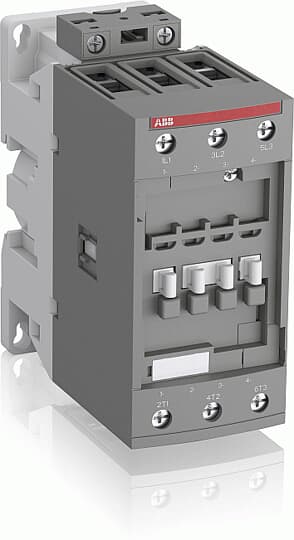

ABB AFC40-30-00-84 AFC40 Contactor, 100 VAC at 50 Hz/110 to 120 VAC at 60 Hz V Coil, 3 Poles
Part Number # AFC40-30-00-84
SKU # 2423256
$170.75 / Each
Typical price:$301.92 / Each
ABB AFC40-30-00-84 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AFC40-30-00-84 |
| SKU #: | 2423256 |
| Coil Power Rating: | 30 hp |
| Coil Voltage: | 100 V AC at 50 Hz/110 to 120 V AC at 60 Hz, 100 VAC at 50 Hz/110 to 120 VAC at 60 Hz |
| Dimensions: | 111 mm H x 55 mm W x 119.5 mm D |
| Enclosure Type: | NEMA 2 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Series: | AFC40 |
| Terminal Type: | Screw |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523018778 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$170.75 / Each
Typical price:$301.92 / Each
Quantity:
- ABB, AFC40-30-00-84, Contactor, Series: AFC40, 100 V AC at 50 Hz/110 to 120 V AC at 60 Hz Coil, 30 hp Coil, 3 Pole, 50/60 Hz Frequency, Screw Terminal, NEMA 2 Enclosure, 3600 Cycles Operating Cycles, -40 to 70 deg C Operating, DIN Rail Mounting, 111 mm H x 55 mm W x 119.5 mm D Dimensions
AFC40-30-00-84 Application
For AC controlled applicationsAFC40-30-00-84 Standards
IEC 60947-1/60947-4-1 and EN 60947-1/60947-4-1|UL 508|CSA C22.2 N°14|CQC Certified|CB Certified|cULus Certified|CCC Certified|CE Certified|UKCA CertifiedSKU #2423256Part Number #AFC40-30-00-84UNSPSC39121529UPC03471523018778
