Part Number # AFS09Z-30-22-30
SKU # 2374009
AFS09Z-30-22-30

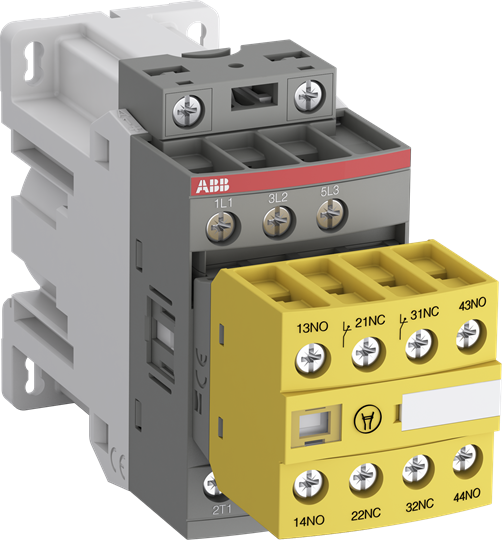

ABB AFS09Z-30-22-30 Contactor
Part Number # AFS09Z-30-22-30
SKU # 2374009
ABB AFS09Z-30-22-30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AFS09Z-30-22-30 |
| SKU #: | 2374009 |
| Coil Power Rating: | 2.2/4/5.5 kW |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 25 A at 600 V AC, 25 A at 600 VAC |
| Dimensions: | 45 mm W x 130.5 mm D x 86 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -60 to 80 deg C |
| Series: | AFS09 |
| Terminal Type: | Screw |
| Wattage: | 144 W |
| Connection type: | Screw Terminal |
| Mounting type: | Front |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523158191 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AFS09Z-30-22-30 Contactor
Brand: ABB
Part Number: AFS09Z-30-22-30
Additional Description: ABB -AFS09Z-30-22-30 AFS09Z, 3P, 2NO2NC 24VDC CONTACTOR MACHINE SAFETY 1SBL136082R3022
Catalog Description: AFS09Z ... AFS38Z contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - dedicated 24 V DC for direct control by PLC-output ? 250 mA, low holding consumption up to 1.7 W - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
AFS09Z-30-22-30 Item Features
- Mechanically linked and mirror contacts make your system safer
- Control circuit with electronic coil interface dedicated 24 VDC for direct control by PLC output >=250 mA, low holding consumption up to 1.7 W
- 24 to 60 VAC, 20 to 60 VDC and 100 to 250 VAC/VDC operated accepting a wide control voltage range
- Reduced panel energy consumption
- Mirror and mechanically linked contacts, with front marked symbol according to IEC60947-5-1, always guaranteeing the right Contactor status
- Front mounted auxiliary contact block permanently fixed
- Protective cover to prevent manual operation
- Yellow housing for easy identification
- Minimum switching capacity 12 V/3 mA, with a failure rate 10-7 according to IEC 60947-5-4
- Built-in surge suppression
- 2.2 kW at 220/230/240 V, 4 kW at 380/400/415/400/440 V, 5.5 kW at 500/690 kW
AFS09Z-30-22-30 Standards
CB Certified|CCC Certified|CE Certified|CQC Certified|CSA C22.2|cUL Listed|DNV Certified|DNV GL Certified|EAC Approved|EN 60947-1/60947-4-1|GL Certified|IEC 60947-1/60947-4-1|RINA Certified|RMRS Certified|RoHS EU Directive 2011/65/EU|UL 508SKU #2374009Part Number #AFS09Z-30-22-30UNSPSC39121529UPC03471523158191
Image provided may only be a representation of final product and may include optional equipment
