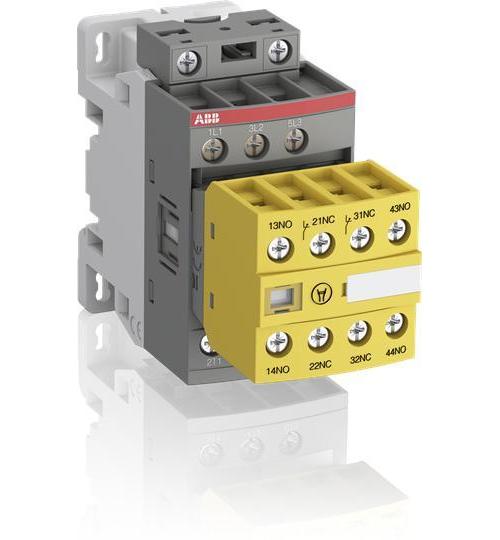

ABB AFS12-30-22-13 Line Contactor
- Coil Power Rating: 3 hp, 7-1/2 hp, 10 hp, 1 hp, 2 hp
- Coil Voltage: 100 to 250
- Contact Configuration: 3NO
- Contact Rating: 28 A at 690 V
- Dimensions: 45 mm W x 110.5 mm D x 86 mm H
- Enclosure Type: IP20
- Number of Auxiliary Contacts: 2NO-2NC
- Number of Poles: 3
- Operating Temperature: -60 to 80
- Series: AFS
- Size: AFS12
- Terminal Type: Screw
- Wattage: 3/5.5/7.5
ABB AFS12-30-22-13 Line Contactor
ABB Line Contactor, Series: AFS, 100 to 250 VAC/VDC Coil, 28 A Maximum Load Current, 3 hp, 7-1/2 hp, 10 hp, 1 hp, 2 hp Coil, 3 Pole, 3/5.5/7.5 kW Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 28 A at 690 V Contact, AFS12 Size, Screw Terminal, IP20 Enclosure, -60 to 80 deg C Operating, 45 mm W x 110.5 mm D x 86 mm H Dimensions
Additional Description: ABB -AFS12-30-22-13 AFS12, 3P, 2NO2NC 100-250VAC/DC
Catalog Description: AFS09 ... AFS38 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage range - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
- Specifications
- 28 A at 690 V, 24 A at 690 V rated operational current AC-1
- 12 A at 220/230/240 V, 12 A at 380/400 V, 12 A at 415 V, 12 A at 440 V, 12.5 A at 500 V, 9 A at 690 V rated operational current AC-3
- 3 hp at 220 to 240 VAC 3 ph, 7-1/2 hp at 440 to 480 VAC 3 ph, 10 hp at 550 to 600 VAC 3 ph, 1 hp at 120 VAC 1 ph, 3 hp at 200 to 208 VAC 3 ph, 2 hp at 240 VAC 1 ph
- 3 kW at 220/230/240 V, 5.5 kW at 380/400 V, 5.5 kW at 415 V, 5.5 kW at 440 V, 7.5 kW at 500 V, 7.5 kW at 690 V, 5.5 kW at 400 V
