AFS16Z-30-22-30

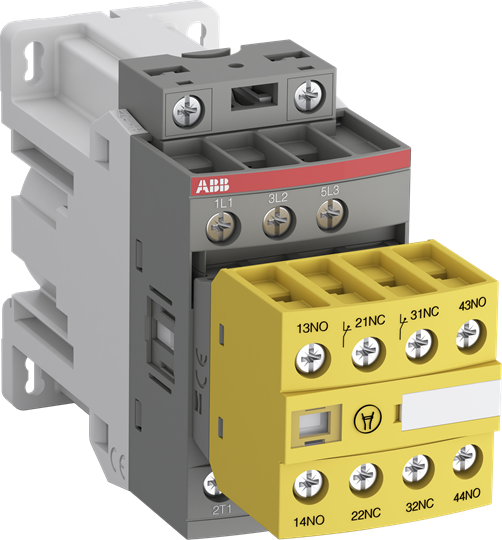

ABB AFS16Z-30-22-30 Contactor
Part Number # AFS16Z-30-22-30
SKU # 2364340
$217.09 / Each
Typical price:$369.34 / Each
ABB AFS16Z-30-22-30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AFS16Z-30-22-30 |
| SKU #: | 2364340 |
| Coil Power Rating: | 4/7.5/9 kW |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 30 A at 600 V AC, 30 A at 600 VAC |
| Dimensions: | 45 mm W x 130.5 mm D x 86 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -60 to 80 deg C |
| Series: | AFS16 |
| Terminal Type: | Screw |
| Wattage: | 144 W |
| Connection type: | Screw Terminal |
| Country of origin: | FR |
| Mounting type: | Front |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523158399 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$217.09 / Each
Typical price:$369.34 / Each
Quantity:
- ABB Contactor, Series: AFS16, 24 VDC Coil, 2 A Maximum Load Current, 4/7.5/9 kW Coil, 3 Pole, 50/60 Hz Frequency, 144 W Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 30 A at 600 V AC Contact, Screw Terminal Connection, Screw Terminal, IP20/IP40 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, Front Mounting, 45 mm W x 130.5 mm D x 86 mm H Dimensions
AFS16Z-30-22-30 Item Features
- Mechanically linked and mirror contacts make your system safer
- Control circuit with electronic coil interface dedicated 24 VDC for direct control by PLC output >=250 mA, low holding consumption up to 1.7 W
- 24 to 60 VAC, 20 to 60 VDC and 100 to 250 VAC/VDC operated accepting a wide control voltage range
- Reduced panel energy consumption
- Mirror and mechanically linked contacts, with front marked symbol according to IEC60947-5-1, always guaranteeing the right Contactor status
- Front mounted auxiliary contact block permanently fixed
- Protective cover to prevent manual operation
- Yellow housing for easy identification
- Minimum switching capacity 12 V/3 mA, with a failure rate 10-7 according to IEC 60947-5-4
- Built-in surge suppression
- 7.5 kW at 400 V, 9 kW at 415/440/500/690 V, 7.5 kW at 380/400 V, 4 kW at 220/230/240 V
AFS16Z-30-22-30 Standards
CB Certified|CCC Certified|CE Certified|CQC Certified|CSA C22.2|cUL Listed|DNV Certified|DNV GL Certified|EAC Approved|EN 60947-1/60947-4-1|GL Certified|IEC 60947-1/60947-4-1|RINA Certified|RMRS Certified|RoHS EU Directive 2011/65/EU|UL 508SKU #2364340Part Number #AFS16Z-30-22-30UNSPSC39121529UPC03471523158399
