Part Number # AFS26-30-22-13
SKU # 2374075
Image Disclaimers Message
AFS26-30-22-13

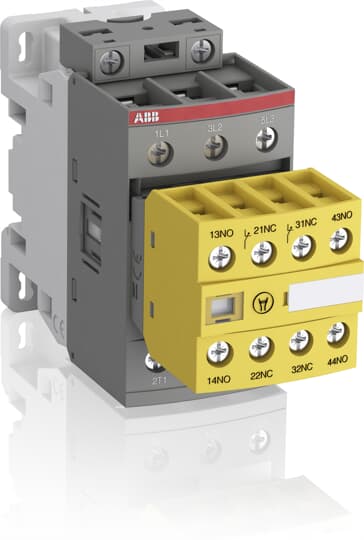

ABB AFS26-30-22-13 Contactor
Part Number # AFS26-30-22-13
SKU # 2374075
$193.18 / Each
Typical price:$328.67 / Each
ABB AFS26-30-22-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AFS26-30-22-13 |
| SKU #: | 2374075 |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 119.5 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Temperature: | -60 to 80 deg C |
| Series: | AFS |
| Terminal Type: | Screw |
| Type: | Auxiliary Block |
| Connection type: | Fixed |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523157330 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$193.18 / Each
Typical price:$328.67 / Each
Quantity:
- ABB, AFS26-30-22-13, Contactor, Auxiliary Block, Series: AFS, 100 to 250 V AC/DC Coil, 45 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Fixed Connection, Screw Terminal, IP20 Enclosure, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 119.5 mm D Dimensions
AFS26-30-22-13 Application
designed for machine safety applicationsAFS26-30-22-13 Item Features
- Delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits
- Mechanically linked and mirror contacts for system safety
AFS26-30-22-13 Standards
IEC 60947-5-4|EN ISO 13849|EN 62061|PROP65SKU #2374075Part Number #AFS26-30-22-13UNSPSC39121529UPC03471523157330
