Part Number # AFS80-30-22-11
SKU # 2366355

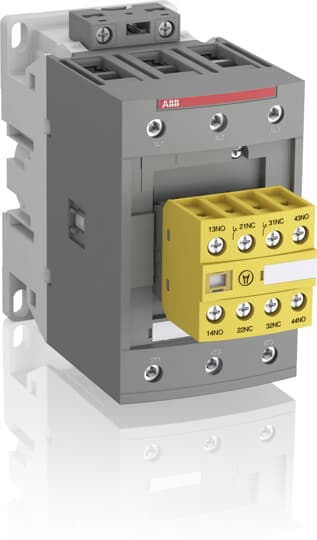

Image provided may only be a representation of
final product and may include optional equipment
AFS80-30-22-11
ABB AFS80-30-22-11 Contactor
Part Number # AFS80-30-22-11
SKU # 2366355
ABB AFS80-30-22-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AFS80-30-22-11 |
| SKU #: | 2366355 |
| Coil Power Rating: | 22/37/45 kW |
| Coil Voltage: | 20 to 60 V DC, 20 to 60 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 105 A at 600 V AC, 105 A at 600 VAC |
| Dimensions: | 70 mm W x 149 mm D x 125.5 mm H |
| Enclosure Type: | IP10/IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -60 to 80 deg C |
| Series: | AFS80 |
| Terminal Type: | Screw |
| Wattage: | 144 W |
| Connection type: | Screw Terminal |
| Country of origin: | FR |
| Mounting type: | Front |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523157910 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AFS80-30-22-11 Contactor
Brand: ABB
Part Number: AFS80-30-22-11
Additional Description: ABB -AFS80-30-22-11 AFS80, 3P, 2NO2NC 24-60VAC/20-60VDC
Catalog Description: AFS40 ... AFS96 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage range - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
AFS80-30-22-11 Item Features
- Control circuit with electronic coil interface 24 to 60 VAC, 20 to 60 VDC and 100 to 250 VAC/VDC operated accepting a wide control voltage range
- Reduced panel energy consumption
- Mirror and mechanically linked contacts, with front marked symbol according to IEC60947-5-1, always guaranteeing the right Contactor status
- Front mounted auxiliary contact block permanently fixed
- Protective cover to prevent manual operation
- Yellow housing for easy identification
- Minimum switching capacity 12 V/3 mA, with a failure rate 10-7 according to IEC 60947-5-4
- Built-in surge suppression
- 37 kW at 400 V, 45 kW at 690/500/415/440 V, 37 kW at 380/400 V, 22 kW at 220/230/240 V
AFS80-30-22-11 Standards
BV Certified|CB Certified|CCC Certified|CE Certified|CQC Certified|cUL Listed|DNV Certified|DNV GL Certified|EAC Approved|GL Certified|RMRS Certified|RoHS EU Directive 2011/65/EU|UL E312527SKU #2366355Part Number #AFS80-30-22-11UNSPSC39121529UPC03471523157910
