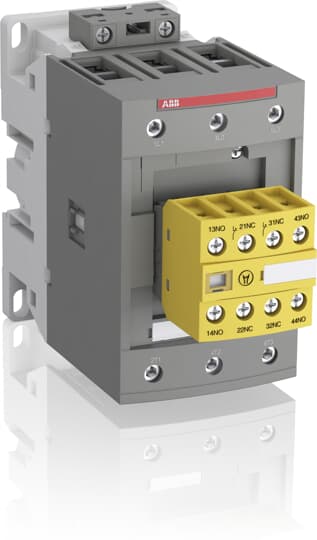

ABB AFS96-30-22-11 Contactor

Brand: ABB

Part Number: AFS96-30-22-11

ABB, AFS96-30-22-11, Contactor, Auxiliary Block, Series: AFS, 20 to 60 V AC/DC Coil, 115 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Fixed Connection, Screw Terminal, IP10/IP20 Enclosure, -60 to 80 deg C Operating, DIN Rail Mounting, 125.5 mm H x 70 mm W x 149 mm D Dimensions

Additional Description: ABB -AFS96-30-22-11 AFS96, 3P, 2NO2NC 24-60VAC/20-60VDC

Catalog Description: AFS40 ... AFS96 contactors are designed for machine safety applications. They are delivered with fixed front-mounted auxiliary contact blocks making them ideal for monitoring and controlling circuits. Mechanically linked and mirror contacts make your system safer. - control circuit with electronic coil interface: - 24...60 V AC, 20...60 V DC and 100...250 V AC / DC operated accepting a wide control voltage range - reduced panel energy consumption - mirror and mechanically linked contacts, with front marked symbol acc. to IEC60947-5-1, always guaranteeing the right contactor status - front-mounted auxiliary contact block: - permanently fixed - protective cover to prevent manual operation - yellow housing for easy identification - minimum switching capacity 12 V / 3 mA, with a failure rate 10-7 acc. to IEC 60947-5-4 - built-in surge suppression
