Part Number # AS09-30-01-20
SKU # 2458989
AS09-30-01-20
ABB AS09-30-01-20
Part Number # AS09-30-01-20
SKU # 2458989
$95.99 / Each
Typical price:$122.70 / Each
ABB AS09-30-01-20 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AS09-30-01-20 |
| SKU #: | 2458989 |
| Coil Power Rating: | 4 kW, 5 hp, 7-1/2 hp |
| Coil Voltage: | 24 V AC |
| Contact Configuration: | 3NO |
| Dimensions: | 2.68 in H x 1.77 in W x 2.85 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 1000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Spring |
| Type: | AC Operated |
| Connection type: | Cable Clamp |
| Country of origin: | CN |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523033207 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$95.99 / Each
Typical price:$122.70 / Each
Quantity:
- ABB, AS09-30-01-20, IEC Contactor, AC Operated, 24 V AC Coil, 9 A Maximum Load Current, 4 kW, 5 hp, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NC Auxiliary Contacts, Cable Clamp Connection, Spring Terminal, IP20 Enclosure, 1000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 2.68 in H x 1.77 in W x 2.85 in D Dimensions
AS09-30-01-20 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDCAS09-30-01-20 Item Features
- 3 main poles and 1 built-in auxiliary contact
- They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
- The AS series 1-stack 3-pole contactors are of the block type design
- 4 kW at 3-phase 400 V IEC, 5 hp at 440 to 480 V, 7-1/2 hp at 550 to 600 V UL/CSA
AS09-30-01-20 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2458989Part Number #AS09-30-01-20UNSPSC39121529UPC03471523033207

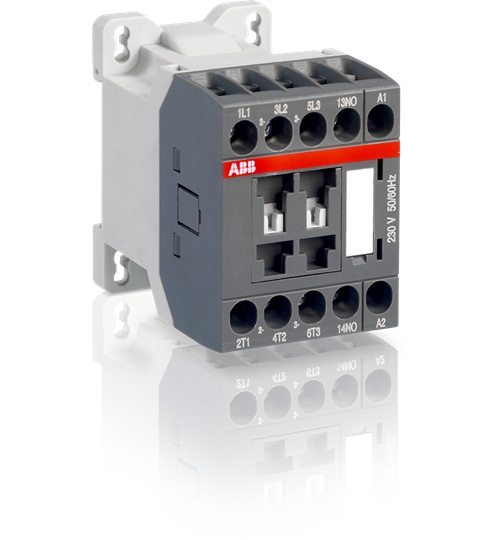

Image provided may only be a representation of final product and may include optional equipment
