Part Number # AS16-30-10S-26
SKU # 2414558
Image Disclaimers Message
AS16-30-10S-26

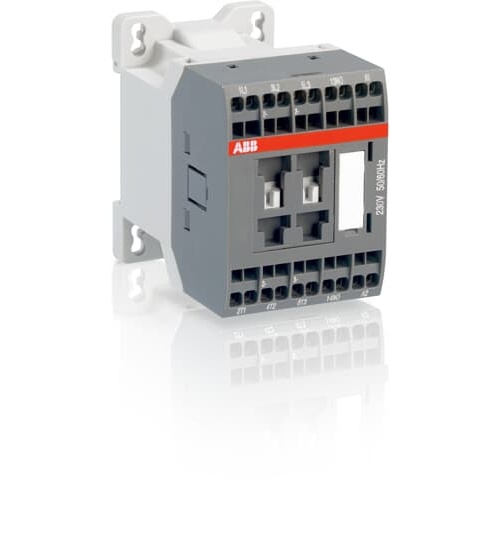

ABB AS16-30-10S-26 Iec Contactor
Part Number # AS16-30-10S-26
SKU # 2414558
$188.13 / Each
Typical price:$240.51 / Each
ABB AS16-30-10S-26 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AS16-30-10S-26 |
| SKU #: | 2414558 |
| Coil Power Rating: | 7.5 kW, 10 hp |
| Coil Voltage: | 230 V AC, 230 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 2.68 in H x 1.77 in W x 2.85 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 1000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Spring |
| Type: | AC Operated |
| Connection type: | Cable Clamp |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523042261 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$188.13 / Each
Typical price:$240.51 / Each
Quantity:
- ABB IEC Contactor, AC Operated, 230 V AC Coil, 15.2 A Maximum Load Current, 7.5 kW, 10 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO Auxiliary Contacts, Cable Clamp Connection, Spring Terminal, IP20 Enclosure, 1000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 2.68 in H x 1.77 in W x 2.85 in D Dimensions
AS16-30-10S-26 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDCAS16-30-10S-26 Item Features
- 3 main poles and 1 built-in auxiliary contact
- They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads
- The AS series 1-stack 3-pole contactors are of the block type design
- 7.5 kW 3-phase 400 V IEC, 10 hp at 440 to 480/550 to 600 VAC
- 15.2 A at 220 to 240 VAC 3-phase UL/CSA
AS16-30-10S-26 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2414558Part Number #AS16-30-10S-26UNSPSC39121529UPC03471523042261
