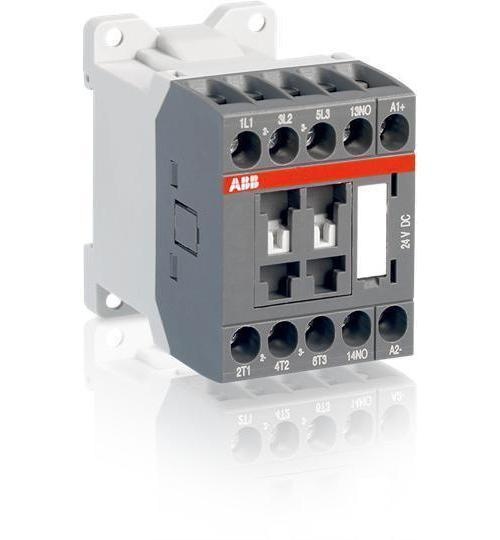

ABB ASL16-30-01-81

Brand: ABB

Part Number: ASL16-30-01-81

ABB IEC Contactor, DC Operated, 24 VDC Coil, 15.2 A Maximum Load Current, 7.5 kW, 10 hp Coil, 3 Pole, 3NO Contact Configuration, 1NC Auxiliary Contacts, Cable Clamp Connection, Spring Terminal, IP20 Enclosure, 1000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 2.68 in H x 1.77 in W x 2.85 in D Dimensions

Additional Description: ABB -ASL16-30-01-81 (N) CTR,3P,15.2A,24VDC,1NC NON-CANCELABLE, NON-RETURNABLE

Catalog Description: ASL16 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. The ASL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. ASL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs.
