ABB B6-22-00-01 Miniature Contactor
Part Number # B6-22-00-01
SKU # 2300228
B6-22-00-01
ABB B6-22-00-01 Miniature Contactor
Part Number # B6-22-00-01
SKU # 2300228
ABB B6-22-00-01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | B6-22-00-01 |
| SKU #: | 2300228 |
| UNSPSC: | 39121529 |
| UPC: | 04013614052101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB B6-22-00-01 Miniature Contactor
Brand: ABB
Part Number: B6-22-00-01
ABB Miniature Contactor, Series: B6, 24 V AC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 4 Pole, 50/60 Hz Frequency, 2.2/4/3 kW Wattage, 2NO-2NC Contact Configuration, 20 A at 380/440 V Contact, B6 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
Additional Description: ABB -B6-22-00-01 (N) B6-22-00 MINI CONTACTOR 24V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The B6-22-00 mini contactor is a compact 4 pole contactor with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
B6-22-00-01 Application
For compact solutions up to 5 hp, 5.5 kWB6-22-00-01 Item Features
- Noiseless and hum-free coil
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 400 V 3 ph, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
B6-22-00-01 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2300228Part Number #B6-22-00-01UNSPSC39121529UPC04013614052101

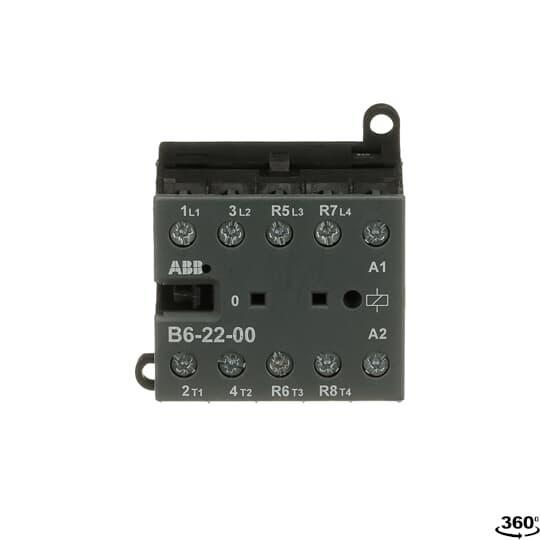

Image provided may only be a representation of final product and may include optional equipment
