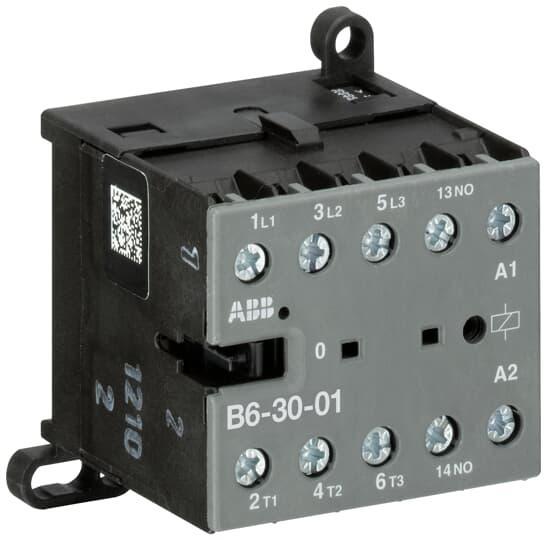

ABB B6-30-01-84 Miniature Contactor
![PDP image](https://do1jvmih5t6vs.cloudfront.net/userfiles/ad/large/abb_b6-30-01-80.jpg)
Image Disclaimers Message
ABB B6-30-01-84 Miniature Contactor
ABB B6-30-01-84 Miniature Contactor
Part #:B6-30-01-84
SKU #: 2165346
Key Features
Part #:B6-30-01-84
SKU #: 2165346
Brand: ABB
Coil Power Rating: 1 hp, 1/2 hp, 2 hp, 3 hp
Coil Voltage: 110 to 127, 110 to 127 VAC
Contact Configuration: 3NO
Contact Rating: 20 A at 380/440 V
Dimensions: 52.5 mm W x 46.5 mm D x 57.5 mm H
- Noiseless and hum-free coil
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 400 V 3 ph, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
ABB B6-30-01-84 Miniature Contactor
ABB Miniature Contactor, Non-Reversing, Series: B6, 110 to 127 VAC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 3 Pole, 50/60 Hz Frequency, 2.2/4/3 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, 20 A at 380/440 V Contact, B6 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
Additional Description: ABB -B6-30-01-84 B6-30-01 MINI CONTACTOR 110-127V
Catalog Description: The B6-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
