Part Number # B6-40-00-84
SKU # 2273834
B6-40-00-84

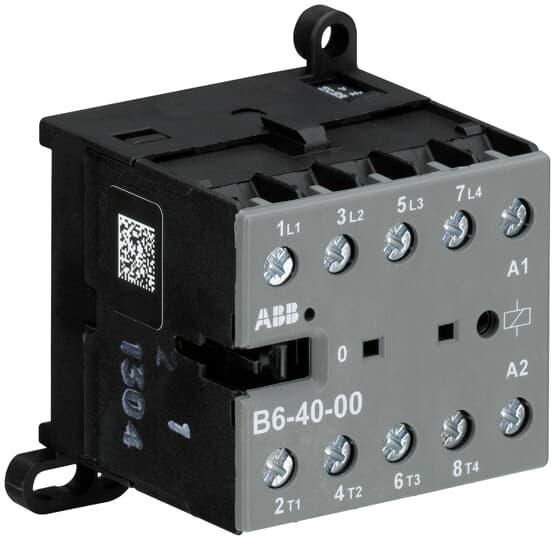

ABB B6-40-00-84 Miniature Contactor
Part Number # B6-40-00-84
SKU # 2273834
$614.80 / 10Each
Typical price:$666.70 / Each
ABB B6-40-00-84 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | B6-40-00-84 |
| SKU #: | 2273834 |
| Coil Power Rating: | 1 hp, 1/2 hp, 2 hp, 3 hp |
| Series: | B6 |
| Size: | B6 |
| Wattage: | 2.2/4/3 kW |
| UNSPSC: | 39121529 |
| UPC: | 04013614156564 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$614.80 / 10Each
Typical price:$666.70 / Each
Quantity:
- ABB Miniature Contactor, Series: B6, 110 to 127 V AC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 4 Pole, 50/60 Hz Frequency, 2.2/4/3 kW Wattage, 4NO Contact Configuration, 20 A at 380/440 V Contact, B6 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
B6-40-00-84 Application
For compact solutions up to 5 hp, 5.5 kWB6-40-00-84 Item Features
- Noiseless and hum-free coil
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 400 V 3 ph, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
B6-40-00-84 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2273834Part Number #B6-40-00-84UNSPSC39121529UPC04013614156564
Image provided may only be a representation of final product and may include optional equipment
