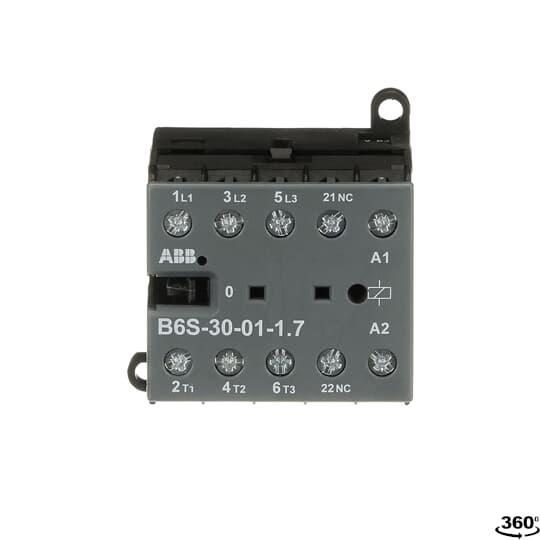

ABB B6S-30-01-1.7 Miniature Contactor
- Coil Power Rating: 1 hp, 1/2 hp, 2 hp, 3 hp
- Coil Voltage: 24
- Contact Configuration: 3NO
- Dimensions: 2.07 in W x 1.84 in D x 2.26 in H
- Enclosure Type: IP20
- Maximum Load Current: 12
- Number of Auxiliary Contacts: 1NC
- Number of Poles: 3
- Operating Cycles: 10000000
- Operating Temperature: -25 to 55
- Series: B6S
- Size: B6S
- Terminal Type: Screw
- Wattage: 2.2/4/3
- Mounting type: Rail/Wall
ABB B6S-30-01-1.7 Miniature Contactor
ABB Miniature Contactor, Series: B6S, 24 VDC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 3 Pole, 2.2/4/3 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, B6S Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 2.07 in W x 1.84 in D x 2.26 in H Dimensions
Additional Description: ABB -B6S-30-01-1.7 3P MINI CONTR,24V/1.7W,1NC
Catalog Description: The B6S-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting.
- Specifications
- Control circuit - DC operated, very low coil consumption
- Suitable for direct control by PLC outputs
- Hum-free coil
- No auxiliary contact block permitted for mounting
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 400 V 3 ph, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
