Part Number # B6S-30-10-1.7
SKU # 2173001
Image Disclaimers Message
Brand: ABB
B6S-30-10-1.7

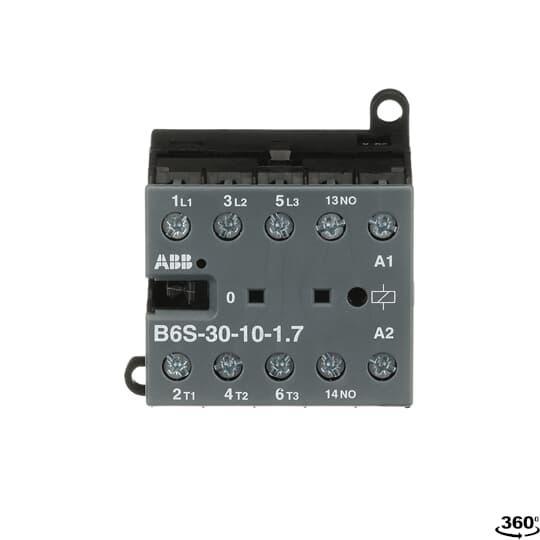

ABB B6S-30-10-1.7 Miniature Contactor
Part Number # B6S-30-10-1.7
SKU # 2173001
$710.90 / 10Each
Typical price:$849.70 / Each
ABB B6S-30-10-1.7 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | B6S-30-10-1.7 |
| SKU #: | 2173001 |
| Coil Power Rating: | 1 hp, 1/2 hp, 2 hp, 3 hp |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 2.07 in W x 1.84 in D x 2.26 in H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Series: | B6S |
| Size: | B6S |
| Terminal Type: | Screw |
| Wattage: | 2.2/4/3, 2.2/4/3 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614053030 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$710.90 / 10Each
Typical price:$849.70 / Each
Quantity:
- ABB Miniature Contactor, Series: B6S, 24 V DC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 3 Pole, 2.2/4/3 kW Wattage, 3NO Contact Configuration, 1NO Auxiliary Contacts, B6S Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 2.07 in W x 1.84 in D x 2.26 in H Dimensions
B6S-30-10-1.7 Application
Residential Buldings, Commercial Buildings and Industrial ApplicationsB6S-30-10-1.7 Item Features
- Control circuit - DC operated, very low coil consumption
- Suitable for direct control by PLC outputs
- Hum-free coil
- No auxiliary contact block permitted for mounting
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 400 V 3 ph, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
B6S-30-10-1.7 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2173001Part Number #B6S-30-10-1.7UNSPSC39121529UPC04013614053030
