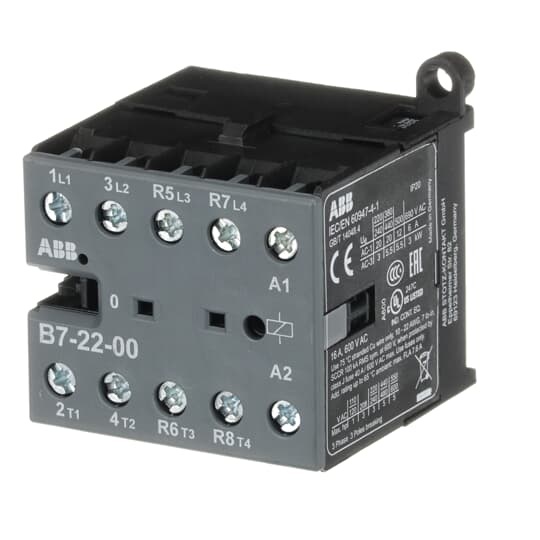

ABB B7-22-00-80 Miniature Contactor
Part Number # B7-22-00-80
SKU # 2287551
ABB B7-22-00-80 Key Features
ABB B7-22-00-80 Miniature Contactor
Brand: ABB
Part Number: B7-22-00-80
ABB Miniature Contactor, Series: B7, 220 to 240 VAC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 4 Pole, 50/60 Hz Frequency, 3/5.5 kW Wattage, 2NO-2NC Contact Configuration, 20 A at 380/440 V Contact, B7 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
Additional Description: ABB -B7-22-00-80 CONTR,2NO-2NC,220/240
Catalog Description: The B7-22-00 mini contactor is a compact 4 pole contactor with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
B7-22-00-80 Application
Residential Buldings, Commercial Buildings and Industrial ApplicationsB7-22-00-80 Item Features
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- Hum-free coil
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
B7-22-00-80 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|LR Certified|RMRS CertifiedSKU #2287551Part Number #B7-22-00-80UNSPSC39121529UPC04013614289019
