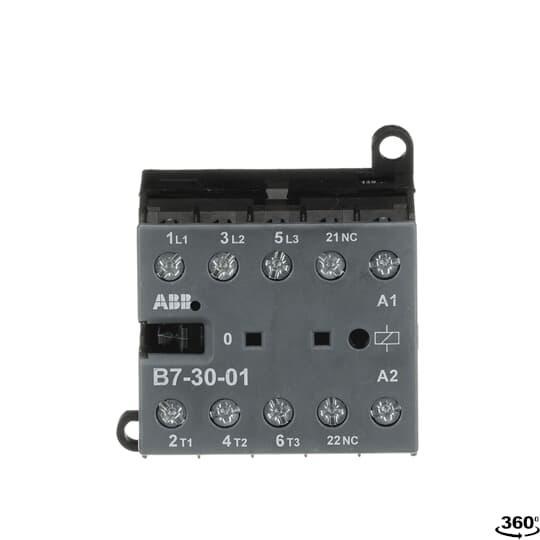

ABB B7-30-01-84 Miniature Contactor
Part Number # B7-30-01-84
SKU # 2196064
$757.20 / 10Each
ABB B7-30-01-84 Key Features
Brand: ABB
Part Number # B7-30-01-84
SKU #2196064
Coil Power Rating: 3 hp, 1-1/2 hp, 5 hp
Coil Voltage: 110 to 127, 110 to 127 VAC
Contact Configuration: 3NO
Contact Rating: 20 A at 380/440 V
Dimensions: 52.5 mm W x 46.5 mm D x 57.5 mm H
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Number of Auxiliary Contacts: 1NC
Number of Poles: 3
Operating Cycles: 10000000, 10000000 Cycles
Operating Temperature: -25 to 55, -25 to 55 deg C
Series: B7
Size: B7
Terminal Type: Screw
Type: Non-Reversing
Wattage: 3/5.5, 3/5.5 kW
Country of origin: DE
Mounting type: Rail/Wall
Manufacturer Name: ABB
UNSPSC: 39121529
UPC: 04013614152511
$757.20 / 10Each
- ABB Miniature Contactor, Non-Reversing, Series: B7, 110 to 127 VAC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 50/60 Hz Frequency, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, 20 A at 380/440 V Contact, B7 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
B7-30-01-84 Item Features
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- Hum-free coil
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
B7-30-01-84 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|CE Certified|CSA Certified|LR Certified|RMRS Certified|RINA Certified|RoHS CompliantSKU #2196064Part Number #B7-30-01-84UNSPSC39121529UPC04013614152511
