B7D-30-01-01

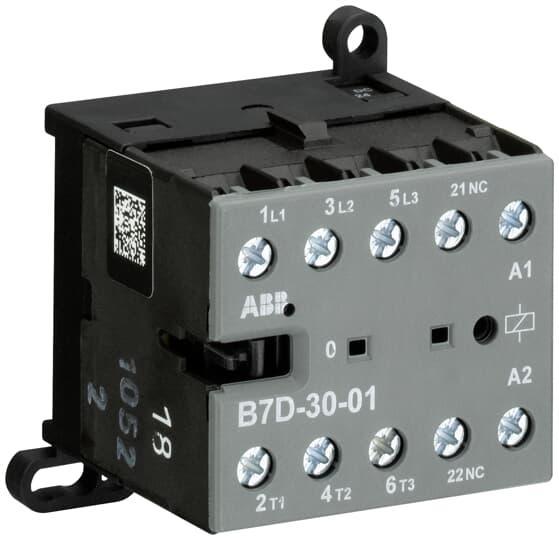

ABB B7D-30-01-01 Miniature Contactor
Part Number # B7D-30-01-01
SKU # 2361464
$85.31 / Each
Typical price:$101.96 / Each
ABB B7D-30-01-01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | B7D-30-01-01 |
| SKU #: | 2361464 |
| Coil Power Rating: | 3 hp, 1-1/2 hp, 5 hp |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 20 A at 380/440 V |
| Dimensions: | 52.5 mm W x 46.5 mm D x 57.5 mm H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -20 to 55, -20 to 55 deg C |
| Series: | B7D |
| Size: | B7D |
| Terminal Type: | Screw |
| Wattage: | 3/5.5, 3/5.5 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614262913 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$85.31 / Each
Typical price:$101.96 / Each
Quantity:
- ABB Miniature Contactor, Series: B7D, 24 V DC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, 20 A at 380/440 V Contact, B7D Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -20 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
B7D-30-01-01 Application
Residential Buldings, Commercial Buildings and Industrial ApplicationsB7D-30-01-01 Item Features
- Control circuit - DC operated, low consumption (3.5 W at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
B7D-30-01-01 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|LR Certified|RMRS CertifiedSKU #2361464Part Number #B7D-30-01-01UNSPSC39121529UPC04013614262913
