B7D-30-10-01

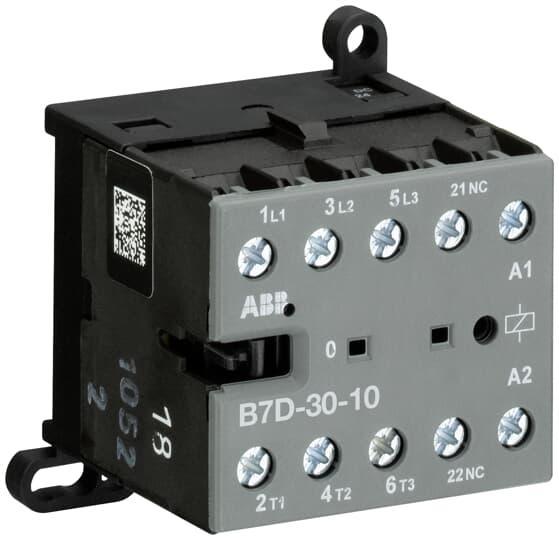

ABB B7D-30-10-01 Iec Contactor
Part Number # B7D-30-10-01
SKU # 2398281
ABB B7D-30-10-01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | B7D-30-10-01 |
| SKU #: | 2398281 |
| Coil Power Rating: | 5.5 kW, 5 hp |
| Coil Voltage: | 24 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 2.26 in H x 2.07 in W x 1.84 in D |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 10^7 Cycles |
| Operating Temperature: | -25 to 55 deg C |
| Terminal Type: | Screw |
| Type: | DC Operated Compact Miniature |
| Connection type: | Cable Clamp |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614262890 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB B7D-30-10-01 Iec Contactor
Brand: ABB
Part Number: B7D-30-10-01
ABB IEC Contactor, DC Operated Compact Miniature, 24 VDC Coil, 9.6 A Maximum Load Current, 5.5 kW, 5 hp Coil, 3 Pole, 3NO Contact Configuration, 1NO Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10^7 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 2.26 in H x 2.07 in W x 1.84 in D Dimensions
Additional Description: ABB -B7D-30-10-01 MINI-CONTACTOR,3POLE,12A,24VDC COIL
Catalog Description: The B7D-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The mini contactor has a build-in surge suppressor diode. Further features are the noiseless and hum-free coil, the integrated overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting.
B7D-30-10-01 Application
For switching resistive or motor loads up to 690 VACB7D-30-10-01 Item Features
- 3 main poles and 1 built-in auxiliary contact
- Control circuit: AC operated, low coil consumption (3.5 W at pull-in and at holding)
- Hum-free coil
- Designed for rail or wall mounting
- 5.5 kW at 400 VAC 3-phase IEC, 5 hp at 440 to 480 VAC 3-phase UL/CSA
- 9.6 A at 220 to 240 VAC 3-phase UL/CSA
B7D-30-10-01 Standards
UL 508|CSA C22.2 File No. N14|IEC/EN 60947-1|IEC/EN 60947-4-1SKU #2398281Part Number #B7D-30-10-01UNSPSC39121529UPC04013614262890
