Part Number # B7D-40-00-01
SKU # 2457103
Image Disclaimers Message
B7D-40-00-01

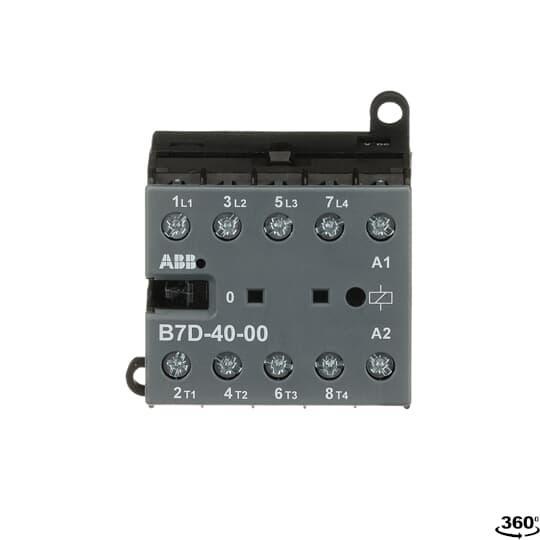

ABB B7D-40-00-01
Part Number # B7D-40-00-01
SKU # 2457103
$109.36 / Each
Typical price:$130.70 / Each
ABB B7D-40-00-01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | B7D-40-00-01 |
| SKU #: | 2457103 |
| Coil Power Rating: | 5 hp |
| Coil Voltage: | 24 V DC |
| Contact Configuration: | 4NO |
| Dimensions: | 2.26 in H x 2.07 in W x 1.84 in D |
| Enclosure Type: | IP20 |
| Number of Poles: | 4 |
| Operating Cycles: | 10^7 Cycles |
| Operating Temperature: | -25 to 55 deg C |
| Terminal Type: | Screw |
| Type: | DC Operated Compact Miniature |
| Connection type: | Cable Clamp |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614262876 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$109.36 / Each
Typical price:$130.70 / Each
Quantity:
- ABB IEC Contactor, DC Operated Compact Miniature, 24 V DC Coil, 9.6 A Maximum Load Current, 5 hp Coil, 4 Pole, 4NO Contact Configuration, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10^7 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 2.26 in H x 2.07 in W x 1.84 in D Dimensions
B7D-40-00-01 Application
For switching resistive loads up to 690 VAC, residential buildings, commercial buildings and industrial applicationsB7D-40-00-01 Item Features
- Control circuit: DC operated, low coil consumption (3.5 W at pull-in and at holding)
- Hum-free coil
- They are ideally suited for applications where reliability is a must and space is at a premium
- 5 hp at 440 to 480 VAC 3-phase UL/CSA
- 9.6 A at 220 to 240 VAC 3-phase UL/CSA
B7D-40-00-01 Standards
UL 508|CSA C22.2 File No. N14|IEC/EN 60947-1|IEC/EN 60947-4-1SKU #2457103Part Number #B7D-40-00-01UNSPSC39121529UPC04013614262876
