B7S-30-01-1.7

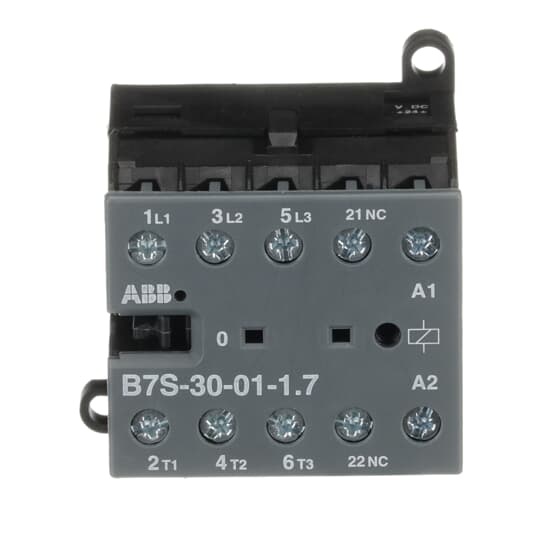

ABB B7S-30-01-1.7 Miniature Contactor
Part Number # B7S-30-01-1.7
SKU # 2165698
ABB B7S-30-01-1.7 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | B7S-30-01-1.7 |
| SKU #: | 2165698 |
| Coil Power Rating: | 3 hp, 1-1/2 hp, 5 hp |
| Coil Voltage: | 24, 24 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 2.07 in W x 1.84 in D x 2.26 in H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Series: | B7S |
| Size: | B7S |
| Terminal Type: | Screw |
| Wattage: | 3/5.5, 3/5.5 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614187889 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB B7S-30-01-1.7 Miniature Contactor
Brand: ABB
Part Number: B7S-30-01-1.7
ABB Miniature Contactor, Series: B7S, 24 VDC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, B7S Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 2.07 in W x 1.84 in D x 2.26 in H Dimensions
Additional Description: ABB -B7S-30-01-1.7 3P MINI CONTR,24VDC,1.7W,1NC
Catalog Description: The B7S-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting. Auxiliary contacts,
B7S-30-01-1.7 Application
Residential Buldings, Commercial Buildings and Industrial ApplicationsB7S-30-01-1.7 Item Features
- Control circuit - DC operated, very low coil consumption
- Suitable for direct control by PLC outputs
- Hum-free coil
- No auxiliary contact block permitted for mounting
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
