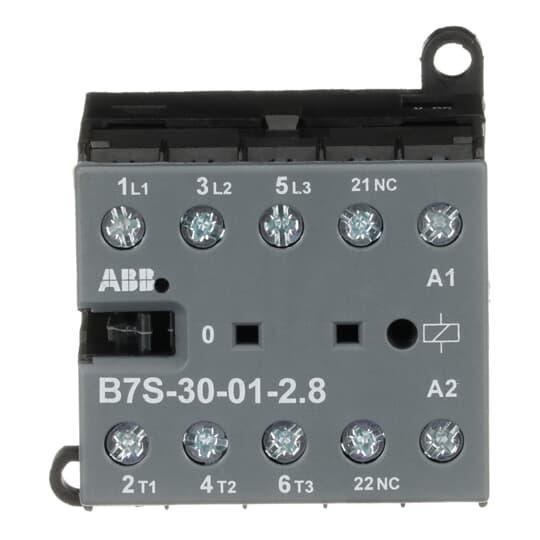

ABB B7S-30-01-2.8 Miniature Contactor

2219629 MFG #: B7S-30-01-2.8
$43.63 / EA
Usually Ships within 5-8 Days
  • Coil Power Rating: 3 hp, 1-1/2 hp, 5 hp
  • Coil Voltage: 17 to 32
  • Contact Configuration: 3NO
  • Dimensions: 52.5 mm W x 46.5 mm D x 57.5 mm H
  • Enclosure Type: IP20
  • Maximum Load Current: 16
  • Number of Auxiliary Contacts: 1NC
  • Number of Poles: 3
  • Operating Cycles: 10000000
  • Operating Temperature: -25 to 55
  • Series: B7S
  • Size: B7S
  • Terminal Type: Screw
  • Wattage: 3/5.5
  • Mounting type: Rail/Wall

ABB B7S-30-01-2.8 Miniature Contactor

ABB Miniature Contactor, Series: B7S, 17 to 32 VDC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, B7S Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions

Additional Description: ABB -B7S-30-01-2.8 MINI CONTR,17-32V,2.8W 1NC AUX NON-CANCELABLE, NON-RETURNABLE

Catalog Description: The B7S-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting. Auxiliary contacts,

  • Specifications
  • Control circuit - DC operated, very low coil consumption
  • Suitable for direct control by PLC outputs
  • Hum-free coil
  • No auxiliary contact block permitted for mounting
  • 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
  • 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
