Part #:B7S-30-10-1.7
SKU #: 2252213
Key Features
Part #:B7S-30-10-1.7
SKU #: 2252213
Brand: ABB
Coil Power Rating: 3 hp, 1-1/2 hp, 5 hp
Coil Voltage: 24, 24 VDC
Contact Configuration: 3NO
Dimensions: 52.5 mm W x 46.5 mm D x 57.5 mm H
Enclosure Type: IP20
- Control circuit - DC operated, very low coil consumption
- Suitable for direct control by PLC outputs
- Hum-free coil
- No auxiliary contact block permitted for mounting
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V

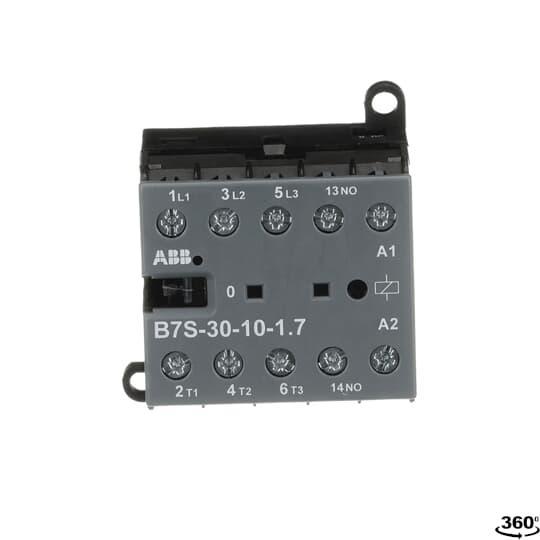

ABB B7S-30-10-1.7 Miniature Contactor
ABB Miniature Contactor, Series: B7S, 24 VDC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NO Auxiliary Contacts, B7S Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
Additional Description: ABB -B7S-30-10-1.7 MINI CONTR 24V/1.7W,1NO AUX
Catalog Description: The B7S-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting. Auxiliary contacts,
