Part Number # B7S-30-10-2.8
SKU # 2180951
Image Disclaimers Message
Brand: ABB
B7S-30-10-2.8

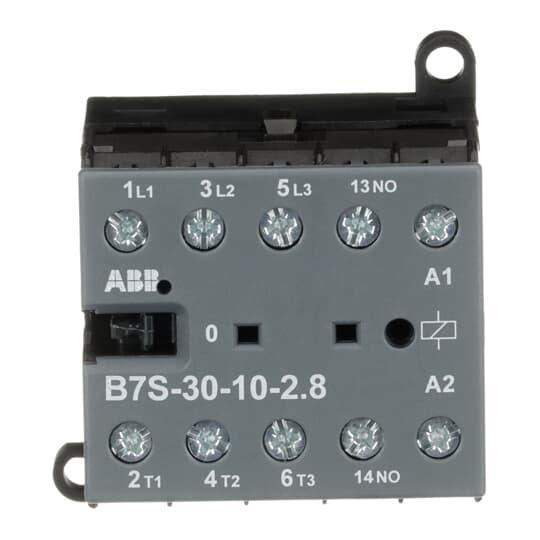

ABB B7S-30-10-2.8 Miniature Contactor
Part Number # B7S-30-10-2.8
SKU # 2180951
$754.60 / 10Each
Typical price:$901.90 / Each
ABB B7S-30-10-2.8 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | B7S-30-10-2.8 |
| SKU #: | 2180951 |
| Coil Power Rating: | 3 hp, 1-1/2 hp, 5 hp |
| Coil Voltage: | 17 to 32, 17 to 32 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 52.5 mm W x 46.5 mm D x 57.5 mm H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Series: | B7S |
| Size: | B7S |
| Terminal Type: | Screw |
| Wattage: | 3/5.5, 3/5.5 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614150609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$754.60 / 10Each
Typical price:$901.90 / Each
Quantity:
- ABB Miniature Contactor, Series: B7S, 17 to 32 VDC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NO Auxiliary Contacts, B7S Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
B7S-30-10-2.8 Application
Ideally suited for applications where reliability is a must and space is at a premiumB7S-30-10-2.8 Item Features
- Control circuit - DC operated, very low coil consumption
- Suitable for direct control by PLC outputs
- Hum-free coil
- No auxiliary contact block permitted for mounting
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
B7S-30-10-2.8 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2180951Part Number #B7S-30-10-2.8UNSPSC39121529UPC04013614150609
