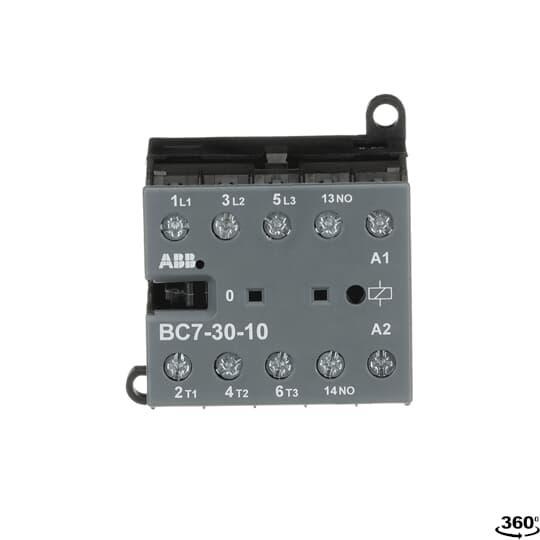

ABB BC7-30-10-16 Miniature Contactor
Part Number # BC7-30-10-16
SKU # 2260165
BC7-30-10-16
ABB BC7-30-10-16 Miniature Contactor
Part Number # BC7-30-10-16
SKU # 2260165
ABB BC7-30-10-16 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | BC7-30-10-16 |
| SKU #: | 2260165 |
| Size: | BC7 |
| UNSPSC: | 39121529 |
| UPC: | 04013614188695 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB BC7-30-10-16 Miniature Contactor
Brand: ABB
Part Number: BC7-30-10-16
ABB Miniature Contactor, Series: BC7, 48 V DC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NO Auxiliary Contacts, 20 A at 380/440 V Contact, BC7 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 52.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
Additional Description: ABB -BC7-30-10-16 (N) CTR,3P,9.6A,48VDC,1NO NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The BC7-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.
BC7-30-10-16 Application
Residential Buldings, Commercial Buildings and Industrial ApplicationsBC7-30-10-16 Item Features
- Control circuit - DC operated, very low coil consumption
- Suitable for direct control by PLC outputs
- Hum-free coil
- No auxiliary contact block permitted for mounting
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 400 V 3 ph, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
BC7-30-10-16 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2260165Part Number #BC7-30-10-16UNSPSC39121529UPC04013614188695
Image provided may only be a representation of final product and may include optional equipment
