Part Number # C2SS2-10B-11
SKU # 2346858
C2SS2-10B-11

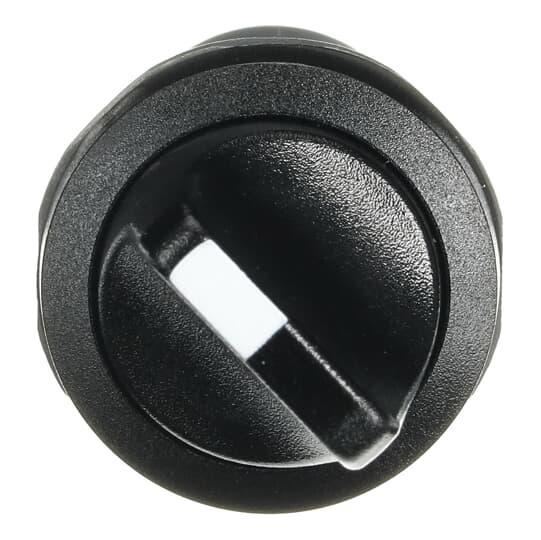

ABB C2SS2-10B-11 Non-Illuminated Selector Switch
Part Number # C2SS2-10B-11
SKU # 2346858
ABB C2SS2-10B-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | C2SS2-10B-11 |
| SKU #: | 2346858 |
| Actuator: | Short Handle |
| Bezel/Housing: | Black Plastic, Plastic |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 1.5 A at 24/127 VAC/1 A at 220/240 VAC |
| Enclosure Type: | IP67/IP69K, IP69K/20 |
| Environmental Conditions: | -25 to 70 deg C Operating Temperature, -30 to 85 deg C Storage Temperature, -25 to 70 deg C Temperature |
| Number of Positions: | 2 |
| Operator Type: | Short Handle, Short Lever |
| Series: | Compact |
| Size: | 0.03 m H x 0.03 m W x 0.072 m D, 22 mm |
| Throw: | 90 deg Left/Right |
| Type: | Compact |
| Connection type: | Thread |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122217 |
| UPC: | 07320500245941 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB C2SS2-10B-11 Non-Illuminated Selector Switch
Brand: ABB
Part Number: C2SS2-10B-11
ABB Non-Illuminated Selector Switch, Compact, 0.03 m H x 0.03 m W x 0.072 m D Size, 1NC-1NO Contact Configuration, Maintained Contact Mode, 1.5 A at 24/127 VAC/1 A at 220/240 VAC Contact, 2 Positions, Bezel/Housing: Black Plastic, Short Handle Actuator, IP20/IP69K Enclosure, Black, Environmental Conditions: -25 to 70 deg C Operating Temperature, -30 to 85 deg C Storage Temperature
Additional Description: ABB -C2SS2-10B-11 SELECTR 2 POS. MAINT. BLACK 1NO+1NC
Catalog Description: Compact Selector Switch - 2-pos Fixed A&C - Short handle - Black - Non-illuminated - Black plastic - 1NO+1NC
C2SS2-10B-11 Specifications
- Actuator position is maintained at A and C
C2SS2-10B-11 Application
Control PanelC2SS2-10B-11 Item Features
- All-in-one design
- Same front as Modular Range, can be combined with Modular Range for additional flexibility
- Reliable and durable design
- Fast mounting
- Low built-in depth of 42mm
- Approved for tough environments according to IP67 and IP69K
- Black bezel
- 0.03 in W x 0.072 in D x 0.03 in H
C2SS2-10B-11 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2346858Part Number #C2SS2-10B-11UNSPSC39122217UPC07320500245941
Image provided may only be a representation of final product and may include optional equipment
