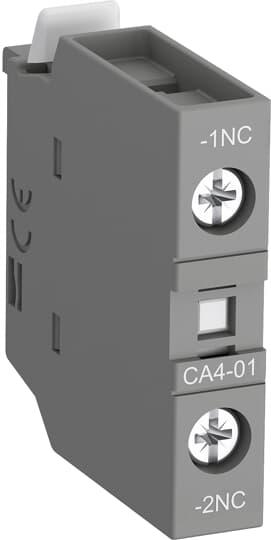

ABB CA4-01 Auxiliary Contact Block

2219969 MFG #: CA4-01
$6.28 / EA
Usually Ships within 5-8 Days
  • Amperage Rating: 0.1/2
  • Frequency Rating: 50/60
  • Number of Contacts: 1, 1NC
  • Operating Cycles: 1200/900 Cycles AC/DC
  • Series: AF Series, CA Series
  • Suitable For Use With: NF 4-Pole Control Relay, NF(Z) 4-Pole Control Relay
  • Type: 1-Pole, Instantaneous
  • Voltage Rating: 24 to 690, 690/250
  • Wattage: 60
  • Mounting type: Front

ABB CA4-01 Auxiliary Contact Block

ABB Auxiliary Contact Block, 1-Pole, Series: CA Series, 690/250 VDC, 0.1/2 A, 50/60 Hz Frequency, 60 W Wattage, 1NC Contacts, Front Mounting, 1200/900 Cycles AC/DC Operating Cycles, For Use With: NF(Z) 4-Pole Control Relay

Additional Description: ABB -CA4-01 FRONT MOUNT AUX 1NC, AF09-AF38

Catalog Description: The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.Types of auxiliary contact blocks for front mounting:• CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts• CC4 1-pole block, with N.O. leading contact or N.C. lagging contact• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on front face.Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the contactor or contactor relay type for compliance with the standard requirements (see ""Terminal marking and positioning"").Types of auxiliary contact blocks for side mounting:• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corre

  • Specifications
  • Screw terminal connection
  • IP20 protection class
  • 6 A at 24 to 127 VAC/2 A at 690 VAC AC-15/6 A at 24 VDC/0.1 A at 250 VDC rated operational current DC-13
  • Front mounted instantaneous auxiliary contact block
