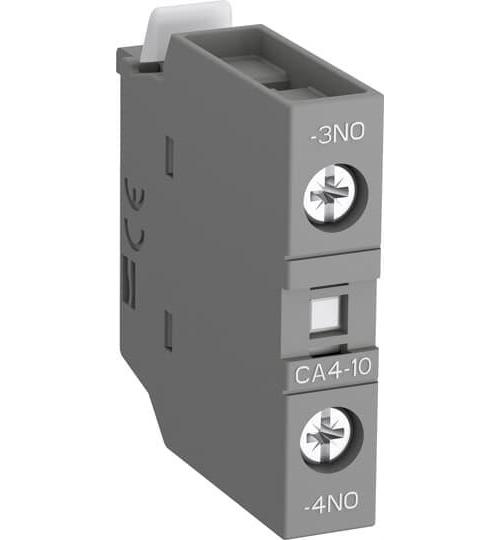

ABB CA4-10 Auxiliary Contact Block

2267022 MFG #: CA4-10
$6.28 / EA
1 In Stock <strong>Ships Same Day</strong>
  • Amperage Rating: 0.1/2
  • Frequency Rating: 50/60
  • Number of Contacts: 1, 1NO
  • Operating Cycles: 1200/900 Cycles AC/DC, 3600
  • Series: CA Series
  • Suitable For Use With: AF09 Through AF38 Across the Line Contactor and 4-Pole NF Control Relay, AF09 to AF38 Across Line Contactor and 4-Pole NF Control Relay
  • Type: 1-Pole, Instantaneous
  • Voltage Rating: 24 to 690, 690/250
  • Wattage: 60
  • Mounting type: Front

ABB CA4-10 Auxiliary Contact Block

ABB Auxiliary Contact Block, 1-Pole, Series: CA Series, 690/250 VDC, 0.1/2 A, 50/60 Hz Frequency, 60 W Wattage, 1NO Contacts, Front Mounting, 1200/900 Cycles AC/DC Operating Cycles, For Use With: AF09 to AF38 Across Line Contactor and 4-Pole NF Control Relay

Additional Description: ABB -CA4-10 FRONT MOUNT AUX 1NO, AF09-AF38

Catalog Description: The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard industrial environments.Types of auxiliary contact blocks for front mounting:• CA4 1 or 4-pole block, with instantaneous N.O., N.C. contacts• CC4 1-pole block, with N.O. leading contact or N.C. lagging contact• CAT4 2-pole block, with instantaneous N.O. + N.C. contacts and A1 / A2 coil terminal connection on front face.Select the 4-pole auxiliary contact blocks CA4-..E, CA4-..M, CA4-..U or CA4-..N type, according to the contactor or contactor relay type for compliance with the standard requirements (see ""Terminal marking and positioning"").Types of auxiliary contact blocks for side mounting:• CAL4 2-pole block, with instantaneous N.O. + N.C. contacts.For clipping onto the right- and/or left-hand side of the contactors. The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected against accidental direct contact and bear the corre

QTY
  • Specifications
  • 1NO front mounted instantaneous auxiliary contact block
  • 3600 cycles per hour
  • Screw terminals
  • 10 mm long wire stripping
  • 1 NO auxiliary contacts
