Part Number # CE4K1-10R-11
SKU # 2205646
CE4K1-10R-11

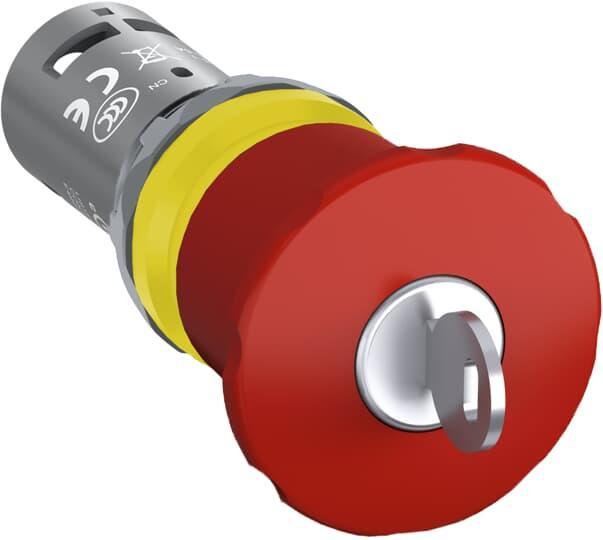

ABB CE4K1-10R-11 Non-Illuminated Pushbutton
Part Number # CE4K1-10R-11
SKU # 2205646
ABB CE4K1-10R-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CE4K1-10R-11 |
| SKU #: | 2205646 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 10 A at 250 V AC/DC, 10 A at 250 VAC/VDC |
| Enclosure Type: | NEMA 1/3R/4/4X/12/13/IP20, NEMA 1/3R/4/4X/12/13/IP66/IP20 |
| Environmental Conditions: | -25 to 70, -25 to 70 deg C, -25 to 70 deg C Operating Temperature |
| Legend: | Emergency Stop |
| Operator Type: | Mushroom Head, Push Lock Key Reset |
| Series: | CE4K, Compact |
| Size: | 0.03 mm H x 0.04 mm W x 0.073 mm D, 40, 40 mm |
| Terminal Type: | Screw |
| Type: | Compact |
| Country of origin: | CN |
| Material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122216 |
| UPC: | 07320500308837 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB CE4K1-10R-11 Non-Illuminated Pushbutton
Brand: ABB
Part Number: CE4K1-10R-11
ABB Non-Illuminated Pushbutton, Series: Compact, 40 mm Size, 1NC-1NO Contact Configuration, 10 A at 250 VAC/VDC Contact, Push Lock Key Reset Operator, Legend: Emergency Stop, Bezel/Housing: Plastic, Mushroom Head Actuator, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP20 Enclosure, Panel Mounting, Plastic, Red/Black, Environmental Conditions: -25 to 70 deg C
Additional Description: ABB -CE4K1-10R-11 40MM KEY REL RED 1NO 1NC
Catalog Description: Compact Emergency Stop - Key release - Mushroom 40mm - Red - Non-illuminated - Black plastic - 1NO+1NC
CE4K1-10R-11 Application
For control panel applicationCE4K1-10R-11 Item Features
- Reduce installation size with compact range
- 0.04 mm H x 0.03 mm W x 0.073 mm D dimension
- 50/60 Hz frequency rating
- High chemical resistance polycarbonate
- 0.5 million mechanical durability
- 24/127 VAC, 1.5 A, 220/240 VAC, 1 A AC current rating
- Fingersafe screw terminal
- Compact range provides extremely reliable IP66, IP67 and IP69K products in just one ordering code simplifying ordering and administration
- Long lifetime thanks to self-cleaning contacts
CE4K1-10R-11 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2205646Part Number #CE4K1-10R-11UNSPSC39122216UPC07320500308837
Image provided may only be a representation of final product and may include optional equipment
