Part Number # CE4T-10R-01
SKU # 2131408
CE4T-10R-01
ABB CE4T-10R-01 Non-Illuminated Pushbutton
Part Number # CE4T-10R-01
SKU # 2131408
ABB CE4T-10R-01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CE4T-10R-01 |
| SKU #: | 2131408 |
| Actuator: | Mushroom Head |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NC |
| Contact Rating: | 10 A at 250 V AC/DC, 10 A at 250 VAC/VDC |
| Enclosure Type: | NEMA 1/3R/4/4X/12/13/IP20, NEMA 1/3R/4/4X/12/13/IP66/IP20 |
| Environmental Conditions: | -25 to 70, -25 to 70 deg C, -25 to 70 deg C Operating Temperature |
| Legend: | Emergency Stop |
| Operator Type: | Mushroom Head, Push Lock-Twist Release, Push-Lock Twist-Release |
| Series: | CE4T, Compact |
| Size: | 0.03 mm H x 0.04 mm W x 0.073 mm D, 40, 40 mm |
| Terminal Type: | Screw |
| Type: | Compact |
| Country of origin: | CN |
| Material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122216 |
| UPC: | 07320500260715 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB CE4T-10R-01 Non-Illuminated Pushbutton
Brand: ABB
Part Number: CE4T-10R-01
ABB Non-Illuminated Pushbutton, Series: Compact, 40 mm, 1NC, 10 A at 250 VAC/VDC Contact, Push-Lock Twist-Release Operator, Emergency Stop Legend, Bezel/Housing: Plastic, Mushroom Head, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP20, Panel Mount, Plastic, Red/Black, Environmental Conditions: -25 to 70 deg C
Additional Description: ABB -CE4T-10R-01 40MM TW-REL RED, 1 NC
Catalog Description: Compact Emergency Stop - Twist release - Mushroom 40mm - Red - Non-illuminated - Black plastic - 1NC
CE4T-10R-01 Application
For control panel applicationCE4T-10R-01 Item Features
- Reduce installation size with compact range
- 0.04 mm H x 0.03 mm W x 0.073 mm D dimension
- 50/60 Hz frequency rating
- High chemical resistance polycarbonate
- 0.5 million mechanical durability
- 24/127 VAC, 1.5 A, 220/240 VAC, 1 A AC current rating
- Fingersafe screw terminal
- Compact range provides extremely reliable IP66, IP67 and IP69K products in just one ordering code simplifying ordering and administration
- Long lifetime thanks to self-cleaning contacts
CE4T-10R-01 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2131408Part Number #CE4T-10R-01UNSPSC39122216UPC07320500260715

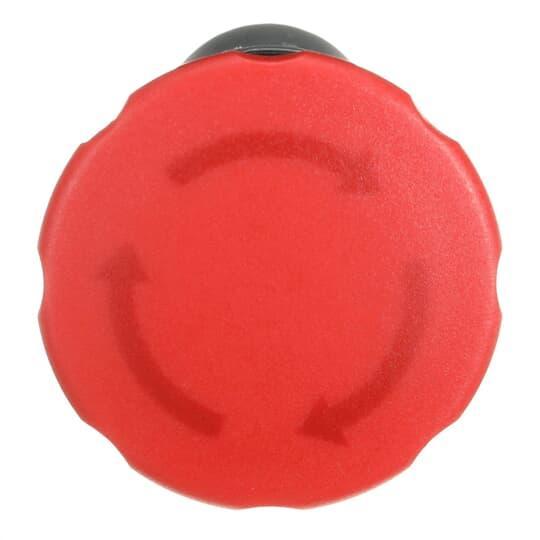

Image provided may only be a representation of final product and may include optional equipment
