Part Number # CL2-501R
SKU # 2317669
Image provided may only be a representation of
final product and may include optional equipment
CL2-501R

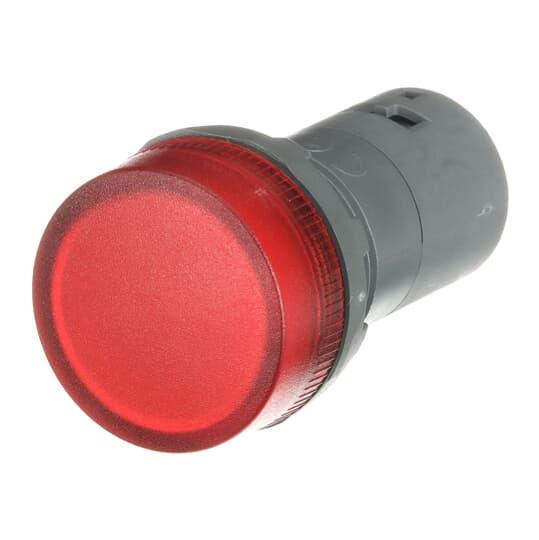

ABB CL2-501R Pilot Light
Part Number # CL2-501R
SKU # 2317669
ABB CL2-501R Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CL2-501R |
| SKU #: | 2317669 |
| Amperage Rating: | 16, 16 mA, 30 mA |
| Base Type: | BA9s |
| Bezel/Housing: | Plastic/Polycarbonate |
| Enclosure Type: | NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K, NEMA 1/3R/4/4X/12/13/IP66/IP67/IP69K/IP20 |
| Environmental Conditions: | -25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity, -25 to 70 deg C Temperature |
| Lamp Type: | LED |
| Lens Color: | Red |
| Lens Material: | Polycarbonate |
| Lens Type: | Flat Round Glass |
| Series: | Compact CL2 |
| Size: | 22 mm, 30, 30 mm |
| Terminal Type: | Screw |
| Type: | Compact Illuminated |
| Country of origin: | CN |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121534 |
| UPC: | 07320500475782 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB CL2-501R Pilot Light
Brand: ABB
Part Number: CL2-501R
ABB Pilot Light, Compact Illuminated, 12 VDC, 16 mA, Red Lens, LED Lamp, 30 mm Size, Circle Shape, BA9s Base, >/=50000 hr Average Life, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K Enclosure, Environmental Conditions: -25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity
Additional Description: ABB -CL2-501R (N) PILOT LIGHT CL2 RED 12V DC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Compact Pilot Light - Pilot light head - Red - Illuminated - Lamptype: LED 12V DC
CL2-501R Application
For use with control panelsCL2-501R Item Features
- All-in-one design
- Built in LED as an option
- 625 Nm wavelength
- Reduced stock keeping
- 110 lx illumination
- Reliable and durable design
- Same front as modular range, can be combined with modular range for additional flexibility
- 60 mcd luminance
- 2 V anti-inductive voltage
- Up to 2 electrical contacts
- Low built-in depth of 42mm
- Integrated LED bulb has a function built-in to cut leakage currents
- Fast mounting
- Robust design
CL2-501R Standards
RoHs, CSA, cUL, CE, GOSTSKU #2317669Part Number #CL2-501RUNSPSC39121534UPC07320500475782
