Part Number # CL2-513R
SKU # 2313758
Image Disclaimers Message
CL2-513R

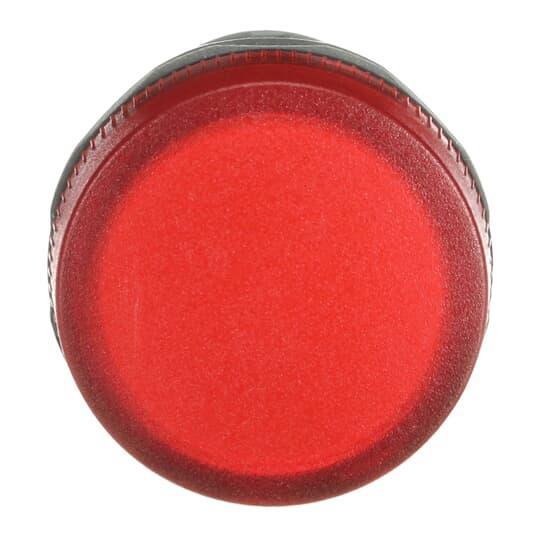

ABB CL2-513R Pilot Light
Part Number # CL2-513R
SKU # 2313758
$221.60 / 10Each
Typical price:$326.80 / Each
ABB CL2-513R Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CL2-513R |
| SKU #: | 2313758 |
| Amperage Rating: | 15 to 17, 15 to 17 mA |
| Base Type: | BA9s |
| Bezel/Housing: | Plastic/Polycarbonate |
| Enclosure Type: | NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K, NEMA 1/3R/4/4X/12/13/IP66/IP67/IP69K/IP20 |
| Environmental Conditions: | -25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity, -25 to 70 deg C Temperature |
| Lamp Type: | LED |
| Lens Color: | Red |
| Lens Material: | Polycarbonate |
| Lens Type: | Flat Round Glass |
| Series: | Compact CL2 |
| Size: | 22 mm, 30, 30 mm |
| Terminal Type: | Screw |
| Type: | Compact Illuminated |
| Country of origin: | CN |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121534 |
| UPC: | 07320500475638 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$221.60 / 10Each
Typical price:$326.80 / Each
Quantity:
ABB CL2-513R Pilot Light
Brand: ABB
Part Number: CL2-513R
ABB Pilot Light, Compact Illuminated, 110 to 130 VAC, 15 to 17 mA, Red Lens, LED Lamp, 30 mm Size, Circle Shape, BA9s Base, >/=50000 hr Average Life, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K Enclosure, Environmental Conditions: -25 to 70 deg C Operating, -40 to 85 deg Storage, 40 to 70% Relative Humidity
Additional Description: ABB -CL2-513R PILOT LIGHT CL2 RED 110-130V AC
Catalog Description: Compact Pilot Light - Pilot light head - Red - Illuminated - Lamptype: LED 110-130V AC
CL2-513R Application
For use with control panelsCL2-513R Item Features
- All-in-one design
- Built in LED as an option
- 85 lx illumination
- 625 Nm wavelength
- Reduced stock keeping
- Reliable and durable design
- Same front as modular range, can be combined with modular range for additional flexibility
- Up to 2 electrical contacts
- 20 V anti-inductive voltage
- Low built-in depth of 42mm
- Integrated LED bulb has a function built-in to cut leakage currents
- Fast mounting
- Robust design
CL2-513R Standards
RoHs, CSA, cUL, CE, GOSTSKU #2313758Part Number #CL2-513RUNSPSC39121534UPC07320500475638
