Part Number # CP1-10Y-11
SKU # 2357529
CP1-10Y-11

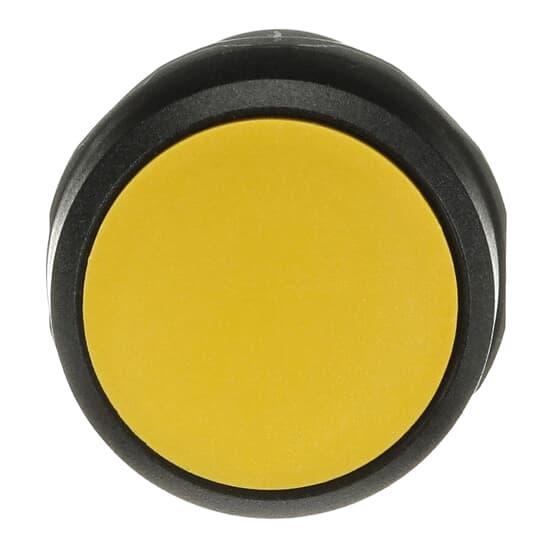

ABB CP1-10Y-11 Compact Non-Illuminated Pushbutton, 22 mm, 1NC-1NO Contact, Yellow
Part Number # CP1-10Y-11
SKU # 2357529
ABB CP1-10Y-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CP1-10Y-11 |
| SKU #: | 2357529 |
| Actuator: | Flush |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 5 A at 250 VAC/VDC |
| Enclosure Type: | NEMA 1/3R/4/4X/12/13/IP20/IP66/IP67/IP69K, NEMA 1/3R/4/4X/12/13/IP66 |
| Environmental Conditions: | -25 to 70 deg C Operating Temperature, -25 to 70 deg C Operating Temperature, -40 to 85 deg C Storage Temperature |
| Series: | Compact |
| Size: | 22, 22 mm |
| Terminal Type: | Screw |
| Type: | Non-Illuminated |
| Country of origin: | CN |
| Material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122216 |
| UPC: | 07320500241011 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB CP1-10Y-11 Compact Non-Illuminated Pushbutton, 22 mm, 1NC-1NO Contact, Yellow
Brand: ABB
Part Number: CP1-10Y-11
ABB Non-Illuminated Pushbutton, Series: Compact, 22 mm, 1NO-1NC, Momentary Contact Mode, 5 A at 250 VAC/VDC Contact, Bezel/Housing: Plastic, Flush, Screw Terminal, NEMA 1/3R/4/4X/12/13/IP66, Panel Mount, Plastic, Yellow/Black, Environmental Conditions: -25 to 70 deg C Operating Temperature
Additional Description: ABB -CP1-10Y-11 (N) COMPCT FLSH PB MOM. YELLOW, 1NO+1NC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Compact Pushbutton - Momentary - Flush - Yellow - Non-illuminated - Black plastic - 1NO+1NC
CP1-10Y-11 Specifications
- 0.5 million mechanical durability
- 50/60 Hz frequency
- 24/127 V, 1.5 A, 220/240 V, 1 A rated AC current
- 24 V/0.3 A, 125 V/0.2 A rated DC current
- Fingersafe screw terminal
CP1-10Y-11 Application
For use with control panelsCP1-10Y-11 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2357529Part Number #CP1-10Y-11UNSPSC39122216UPC07320500241011
