Part Number # CP3-10R-11
SKU # 2369736
Image Disclaimers Message
Brand: ABB
CP3-10R-11

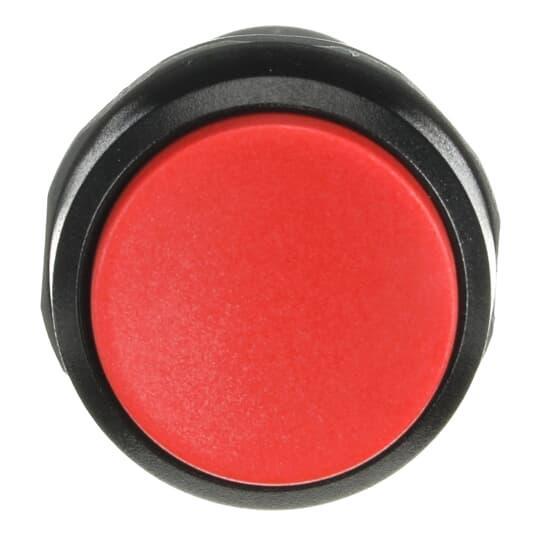

ABB CP3-10R-11 Non-Illuminated Pushbutton
Part Number # CP3-10R-11
SKU # 2369736
$16.81 / Each
Typical price:$24.78 / Each
ABB CP3-10R-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CP3-10R-11 |
| SKU #: | 2369736 |
| Actuator: | Extended, Extended Pushbutton |
| Bezel/Housing: | Black Plastic |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 0.2 A at 125 V DC, 0.2 A at 125 VDC |
| Enclosure Type: | NEMA 1/3R/4/4X/12/13/ IP66/IP67/IP69K, NEMA 1/3R/4/4X/12/13/66/67/69K, NEMA 1/3R/4/4X/12/13/IP66/IP67/IP69K |
| Environmental Conditions: | -25 to 70 deg C Operating, -40 to 85 deg Storage |
| Number of Positions: | 2 |
| Series: | CP Series |
| Size: | 0.06 m L x 0.03 m W x 0.03 m H |
| Terminal Type: | Screw Terminal |
| Type: | Compact |
| Color: | Red |
| Connection type: | Screw Clamp |
| Country of origin: | CN |
| Material: | Plastic |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122216 |
| UPC: | 07320500243091 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$16.81 / Each
Typical price:$24.78 / Each
Quantity:
- ABB, CP3-10R-11, Pushbutton, Compact, 1NO-1NC Contact Configuration, Momentary Contact Mode, Bezel/Housing: Black Plastic, Extended Actuator, Screw Terminal, NEMA 1/3R/4/4X/12/13/66/67/69K Enclosure, Red, Environmental Conditions: -25 to 70 deg C Operating, -40 to 85 deg Storage
CP3-10R-11 Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC and The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuitsCP3-10R-11 Item Features
- Compact Pushbutton
- The same front-of-panel design and appear consistent when combined
- An all-in-one construction and rugged design for added simplicity and ease of installation
- According to IEC 60529, IEC 60947-1, EN 60529 auxiliary terminals IP20 deg of protection
- 0.5 million mechanical durability
- Level 0 - information enabled
- 50/60 Hz frequency rating
- Integrated LED (wide range of voltages)
- BA9s base for filament bulb or LED
- 1.5 A at 24/127 VAC, 1 A at 220/240 VAC and 0.3 A at 24 VDC contact rating
- 22 mm mounting
CP3-10R-11 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2369736Part Number #CP3-10R-11UNSPSC39122216UPC07320500243091
