Part Number # DP20C1P-1
SKU # 2361250
DP20C1P-1

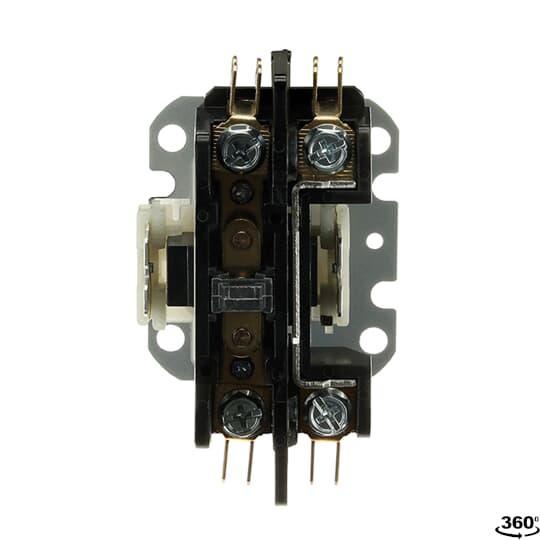

ABB DP20C1P-1 Definite Purpose Contactor
Part Number # DP20C1P-1
SKU # 2361250
ABB DP20C1P-1 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP20C1P-1 |
| SKU #: | 2361250 |
| Coil Power Rating: | 1, 2 hp |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Configuration: | 1NO, 1NO SPDT, 1NO-SPDT, SPDT 1NO |
| Contact Rating: | 600 V |
| Dimensions: | 2.36 in L x 2.07 in W x 3.26 in H, 2.44 in L x 2 in W x 3.3 in H |
| Enclosure Type: | NEMA 5/Open, Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 1 |
| Operating Cycles: | 10000, 10000 Cycles |
| Operating Temperature: | -40 to 150, -40 to 150 deg F, 130 deg C |
| Series: | DP Series |
| Size: | SZ 20 |
| Terminal Type: | Screw |
| Type: | 1-Phase Non-Reversing, Non-Reversing |
| Country of origin: | CN |
| Material: | Arc-Resistant Polyester, Polyester |
| Mounting type: | DIN Rail, Plate |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00888614035058 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB DP20C1P-1 Definite Purpose Contactor
Brand: ABB
Part Number: DP20C1P-1
ABB Definite Purpose Contactor, Non-Reversing, 120 VAC Coil, 20 A Maximum Load Current, 2 hp Coil, 1 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 2 Auxiliary Contacts, SZ 20 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, Plate Mounting, 2.44 in L x 2 in W x 3.3 in H Dimensions
Additional Description: ABB -DP20C1P-1 (N) CONTACTOR DP, 20A, 1P, COIL 120VAC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DP20C1P-1 DP contactor provide outstanding performance in various HVAC, Food service equipment, refrigeration and welding applications and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
DP20C1P-1 Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and Welding ApplicationsDP20C1P-1 Item Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- 1 hp at 120 VAC, 2 hp at 240 VAC 1-phase
DP20C1P-1 Standards
UL 508 Guide No NLDX2/NLDX8 File No E224401|CSA C22.2 File No 221260|CE Certified|Semko Certified|EN60947-4-1:2001SKU #2361250Part Number #DP20C1P-1UNSPSC39121529UPC00888614035058
Image provided may only be a representation of final product and may include optional equipment
