Part Number # DP20C2P-2
SKU # 2437519
Image Disclaimers Message
Brand: ABB
DP20C2P-2

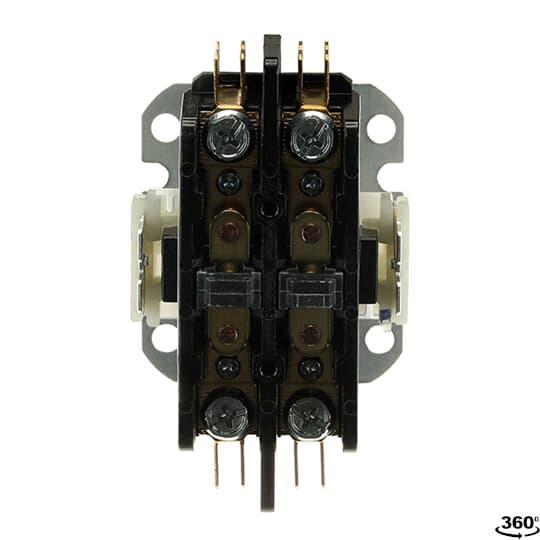

ABB DP20C2P-2 Definite Purpose Contactor, 208/240 VAC V Coil, 20 A, 2NO Contact, 2 Poles
Part Number # DP20C2P-2
SKU # 2437519
$44.69 / Each
Typical price:$65.29 / Each
ABB DP20C2P-2 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP20C2P-2 |
| SKU #: | 2437519 |
| Coil Power Rating: | 6.5/8/30/33 VA |
| Coil Voltage: | 208/240 V AC, 208/240 VAC |
| Contact Configuration: | 2NO |
| Contact Rating: | 600 V AC, 600 VAC |
| Dimensions: | 3.3 in H x 2 in W x 2.44 in D |
| Enclosure Type: | NEMA 5/Open |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 2 |
| Operating Temperature: | 130 deg C |
| Size: | SZ 20 |
| Terminal Type: | Screw |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00804325552226 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$44.69 / Each
Typical price:$65.29 / Each
Quantity:
- ABB, DP20C2P-2, Definite Purpose Contactor, 208/240 V AC Coil, 20 A Maximum Load Current, 6.5/8/30/33 VA Coil, 2 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 2NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 20 Size, Screw Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 3.3 in H x 2 in W x 2.44 in D Dimensions
DP20C2P-2 Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and WeldingDP20C2P-2 Item Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 33/30 VA inrush, 8/6.5 VA closed coil power rating
DP20C2P-2 Standards
UL 508|UL Guide No. NLDX2, NLDX8|UL File No. E224401, C22.2 No. 221260|CSA Class 3211 04/3211 84|CE, Semko Certified, EN60947-4-1:2001SKU #2437519Part Number #DP20C2P-2UNSPSC39121529UPC00804325552226
