Part Number # DP30C2P-2
SKU # 363996
DP30C2P-2

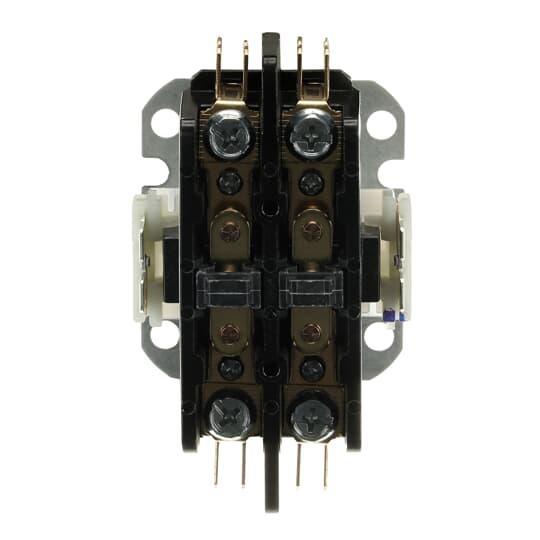

ABB DP30C2P-2 Definite Purpose Contactor, 208/240 VAC V Coil, 30 A, 2NO Contact, 2 Poles
Part Number # DP30C2P-2
SKU # 363996
ABB DP30C2P-2 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP30C2P-2 |
| SKU #: | 363996 |
| Coil Power Rating: | 6.5/8/30/33, 6.5/8/30/33 VA |
| Coil Voltage: | 208/240, 208/240 V AC, 208/240 VAC |
| Contact Configuration: | 2NO |
| Contact Rating: | 600, 600 V AC, 600 VAC |
| Dimensions: | 3.3 in H x 2 in W x 2.44 in D |
| Enclosure Type: | NEMA 5/Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 2 |
| Operating Temperature: | 130, 130 deg C |
| Size: | SZ 30 |
| Terminal Type: | Screw |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00662019755526 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB DP30C2P-2 Definite Purpose Contactor, 208/240 VAC V Coil, 30 A, 2NO Contact, 2 Poles
Brand: ABB
Part Number: DP30C2P-2
ABB Definite Purpose Contactor, 208/240 VAC Coil, 30 A Maximum Load Current, 6.5/8/30/33 VA Coil Power Rating, 2 Poles, 50/60 Hz, Non-Reversing Contact, 2NO, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 30, Screw Terminal, NEMA 5/Open, 130 deg C Operating, DIN Rail Mount, 3.3 in H x 2 in W x 2.44 in D
Additional Description: ABB -DP30C2P-2 (N) DP CONTR,30A,2P,240/208V NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DP30C2P-2 DP contactor provide outstanding performance in various HVAC, Food service equipment, refrigeration and welding applications and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
DP30C2P-2 Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and WeldingDP30C2P-2 Item Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 33/30 VA inrush, 8/6.5 VA closed coil power rating
DP30C2P-2 Standards
UL 508|UL Guide No. NLDX2|NLDX8|UL File No. E224401|C22.2 No. 221260|Class 3211 04/3211 84|CE|Semko Certified|EN60947-4-1:2001SKU #363996Part Number #DP30C2P-2UNSPSC39121529UPC00662019755526
Image provided may only be a representation of final product and may include optional equipment
