Part Number # DP30C2P-F
SKU # 2170275
Image Disclaimers Message
DP30C2P-F

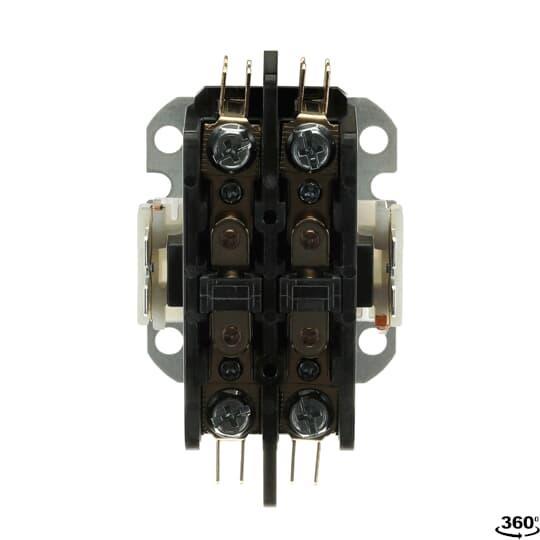

ABB DP30C2P-F Definite Purpose Contactor, 24 VAC V Coil, 30 A, 2NO Contact, 2 Poles
Part Number # DP30C2P-F
SKU # 2170275
$38.88 / Each
Typical price:$65.29 / Each
ABB DP30C2P-F Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP30C2P-F |
| SKU #: | 2170275 |
| Coil Power Rating: | 6.5/8/30/33, 6.5/8/30/33 VA |
| Coil Voltage: | 24, 24 V AC, 24 VAC |
| Contact Configuration: | 2NO |
| Contact Rating: | 600, 600 V AC, 600 VAC |
| Dimensions: | 3.3 in H x 2 in W x 2.44 in D |
| Enclosure Type: | NEMA 5/Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 2 |
| Operating Temperature: | 130, 130 deg C |
| Size: | SZ 30 |
| Terminal Type: | Screw |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00662019751825 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$38.88 / Each
Typical price:$65.29 / Each
Quantity:
- ABB Definite Purpose Contactor, 24 V AC Coil, 30 A Maximum Load Current, 6.5/8/30/33 VA Coil Power Rating, 2 Poles, 50/60 Hz, Non-Reversing Contact, 2NO, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 30, Screw Terminal, NEMA 5/Open, 130 deg C Operating, DIN Rail Mount, 3.3 in H x 2 in W x 2.44 in D
DP30C2P-F Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and WeldingDP30C2P-F Item Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 33/30 VA inrush, 8/6.5 VA closed coil power rating
DP30C2P-F Standards
UL 508|UL Guide No. NLDX2|NLDX8|UL File No. E224401|C22.2 No. 221260|Class 3211 04/3211 84|CE|Semko Certified|EN60947-4-1:2001SKU #2170275Part Number #DP30C2P-FUNSPSC39121529UPC00662019751825
