DP30C3P-1S

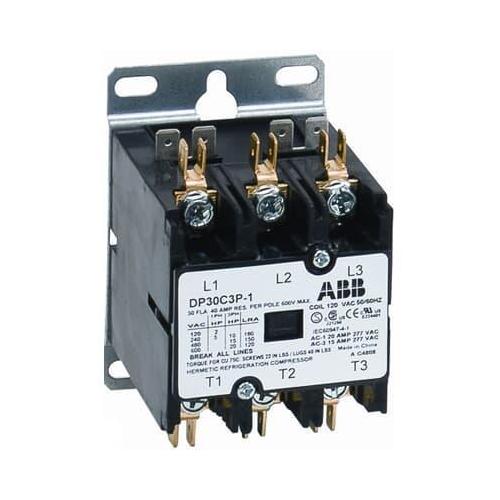

ABB DP30C3P-1S Definite Purpose Contactor
Part Number # DP30C3P-1S
SKU # 2401461
$64.66 / Each
Typical price:$94.49 / Each
ABB DP30C3P-1S Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP30C3P-1S |
| SKU #: | 2401461 |
| Coil Power Rating: | 5 hp, 20 hp |
| Coil Voltage: | 120 V AC, 120 VAC |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Dimensions: | 3.25 in H x 2.37 in W x 2.91 in D |
| Enclosure Type: | NEMA ICS 5 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 30000 to 100000 Cycles |
| Operating Temperature: | -40 to 150 deg F |
| Size: | DP30C3P |
| Terminal Type: | Box Lug/Screw |
| Type: | Non-Reversing Standard Arc Cover |
| Country of origin: | CN |
| Material: | Polyester |
| Mounting type: | Snap-in |
| Power factor: | 40 to 50%, 75 to 80% |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00888614086807 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$64.66 / Each
Typical price:$94.49 / Each
Quantity:
- ABB Definite Purpose Contactor, Non-Reversing Standard Arc Cover, 120 V AC Coil, 30 A Maximum Load Current, 5 hp, 20 hp Coil, 3 Pole, 50/60 Hz Frequency, 1 SPDT/2 SPDT Contact, 1NO-1NC Contact Configuration, 2 Auxiliary Contacts, Power Factor: 40 to 50%, 75 to 80%, DP30C3P Size, Box Lug/Screw Terminal, NEMA ICS 5 Enclosure, 30000 to 100000 Cycles Operating Cycles, -40 to 150 deg F Operating, Snap-In Mounting, Polyester, 3.25 in H x 2.37 in W x 2.91 in D Dimensions
DP30C3P-1S Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and WeldingDP30C3P-1S Item Features
- Industry standard mounting plate provides easily accessible mounting holes
- Coil terminals are provided with 32 to 6 AWG screws and 1/4 in quick connect or dual 1/4 in quick connect terminals
- Exclusive hex, slotted, Phillips 32 to 10 AWG terminal screws for main terminals
- Coil is class B (130 deg C) insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from highly arc resistant polyester
- 2 hp at 120 V, 5 hp at 240 V 1-phase, 10 hp at 208/240 V, 15 hp at 480 V, 20 hp at 600 V 3-phase
- 75 to 80% at LRA, 40 to 50% at FRA
DP30C3P-1S Standards
UL File No. 508|E224401|CSA C22.2 File No. 221260 (1456104) Class 321104/321184|CE File No. EN60947-4-1:2001|Semko CertifiedSKU #2401461Part Number #DP30C3P-1SUNSPSC39121529UPC00888614086807
