Part Number # DP40C2P-F
SKU # 2432854
DP40C2P-F

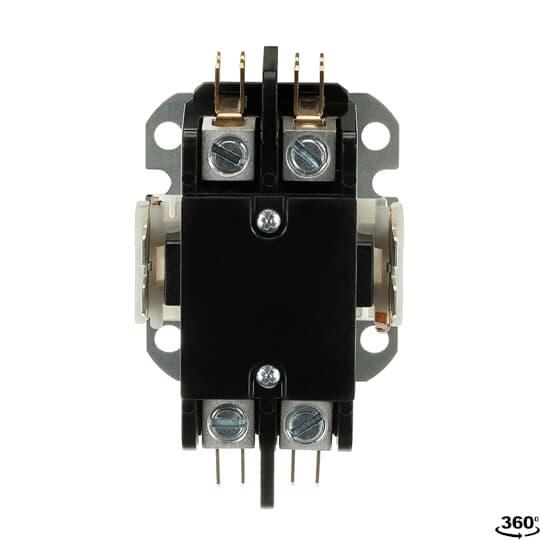

ABB DP40C2P-F Definite Purpose Contactor, 24 VAC V Coil, 40 A, 2NO Contact, 2 Poles
Part Number # DP40C2P-F
SKU # 2432854
ABB DP40C2P-F Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP40C2P-F |
| SKU #: | 2432854 |
| Coil Power Rating: | 6.5/8/30/33 VA |
| Coil Voltage: | 24 V AC, 24 VAC |
| Contact Configuration: | 2NO |
| Contact Rating: | 600 V AC, 600 VAC |
| Dimensions: | 3.3 in H x 2 in W x 2.61 in D |
| Enclosure Type: | NEMA 5/Open |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 2 |
| Operating Temperature: | 130 deg C |
| Size: | SZ 40 |
| Terminal Type: | Box Lug |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00662019754208 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB DP40C2P-F Definite Purpose Contactor, 24 VAC V Coil, 40 A, 2NO Contact, 2 Poles
Brand: ABB
Part Number: DP40C2P-F
Additional Description: ABB -DP40C2P-F (N) DP CONTR,40A,2P,24/60 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DP40C2P-F DP contactor provide outstanding performance in various HVAC, Food service equipment, refrigeration and welding applications and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
DP40C2P-F Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and WeldingDP40C2P-F Item Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 33/30 VA inrush, 8/6.5 VA closed coil power rating
DP40C2P-F Standards
UL 508|UL Guide No. NLDX2|NLDX8|UL File No. E224401|C22.2 No. 221260|Class 3211 04/3211 84|CE|Semko Certified|EN60947-4-1:2001SKU #2432854Part Number #DP40C2P-FUNSPSC39121529UPC00662019754208
Image provided may only be a representation of final product and may include optional equipment
