DP40C3P-1/B/CE

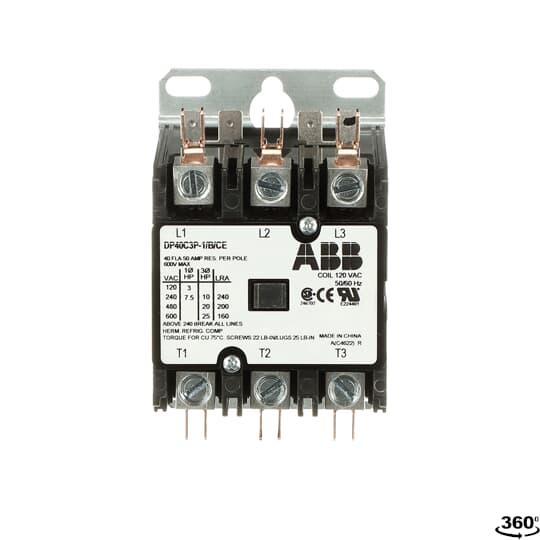

ABB DP40C3P-1/B/CE
Part Number # DP40C3P-1/B/CE
SKU # 2457842
ABB DP40C3P-1/B/CE Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP40C3P-1/B/CE |
| SKU #: | 2457842 |
| Coil Power Rating: | 7.5 hp, 25 hp |
| Coil Voltage: | 120 V AC |
| Contact Configuration: | 1NO-1NC |
| Dimensions: | 3.25 in H x 2.37 in W x 2.91 in D |
| Enclosure Type: | NEMA ICS 5 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 30000 to 100000 Cycles |
| Operating Temperature: | -40 to 150 deg F |
| Size: | DP40C3P |
| Terminal Type: | Box Lug/Screw |
| Type: | Non-Reversing Standard Arc Cover |
| Country of origin: | CN |
| Material: | Polyester |
| Mounting type: | Snap-in |
| Power factor: | 40 to 50%, 75 to 80% |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121522 |
| UPC: | 00662019825212 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB DP40C3P-1/B/CE
Brand: ABB
Part Number: DP40C3P-1/B/CE
ABB Definite Purpose Contactor, Non-Reversing Standard Arc Cover, 120 VAC Coil, 40 A Maximum Load Current, 7.5 hp, 25 hp Coil, 3 Pole, 50/60 Hz Frequency, 1 SPDT/2 SPDT Contact, 1NC-1NO Contact Configuration, 2 Auxiliary Contacts, Power Factor: 40 to 50%, 75 to 80%, DP40C3P Size, Box Lug/Screw Terminal, NEMA ICS 5 Enclosure, 30000 to 100000 Cycles Operating Cycles, -40 to 150 deg F Operating, Snap-In Mounting, Polyester, 3.25 in H x 2.37 in W x 2.91 in D Dimensions
Additional Description: ABB -DP40C3P-1/B/CE (N) DP CONTR, 40A,3P, COIL 120V BULK PCK = 25 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: DP40C3P-1/B/CE DP contactor provide outstanding performance in various HVAC, Food service equipment, refrigeration and welding applications and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
DP40C3P-1/B/CE Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and WeldingDP40C3P-1/B/CE Item Features
- Industry standard mounting plate provides easily accessible mounting holes
- Coil terminals are provided with 32 to 6 AWG screws and 1/4 in quick connect or dual 1/4 in quick connect terminals
- Exclusive hex, slotted, Phillips 32 to 10 AWG terminal screws for main terminals
- Coil is class B (130 deg C) insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from highly arc resistant polyester
- 3 hp at 120 V, 7-1/2 hp at 240 V 1-phase, 10 hp at 208/240 V, 20 hp at 480 V, 25 hp at 600 V 3-phase
- 75 to 80% at LRA, 40 to 50% at FRA
DP40C3P-1/B/CE Standards
UL File No. 508|E224401|CSA C22.2 File No. 221260 (1456104) Class 321104/321184|CE File No. EN60947-4-1:2001|Semko CertifiedSKU #2457842Part Number #DP40C3P-1/B/CEUNSPSC39121522UPC00662019825212
