Part Number # DP60C3P-1
SKU # 2287591
Image Disclaimers Message
DP60C3P-1

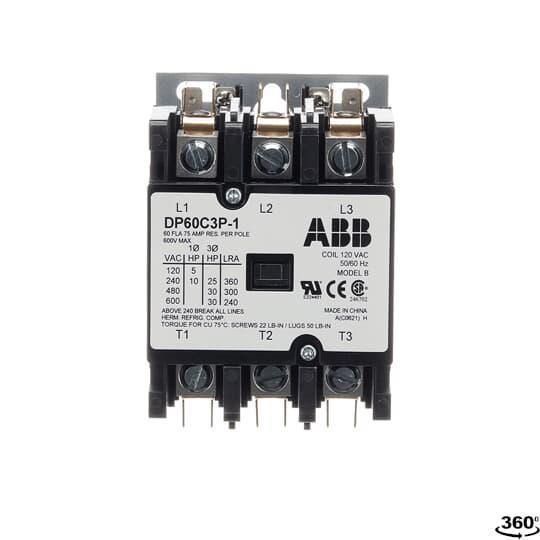

ABB DP60C3P-1 Definite Purpose Contactor, 120 VAC V Coil, 60 A, 3NO Contact, 3 Poles
Part Number # DP60C3P-1
SKU # 2287591
ABB DP60C3P-1 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | DP60C3P-1 |
| SKU #: | 2287591 |
| Coil Power Rating: | 7/9/59/62, 7/9/59/62 VA |
| Coil Voltage: | 120, 120 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 600, 600 VAC |
| Dimensions: | 4.15 in H x 2.75 in W x 3.56 in D |
| Enclosure Type: | NEMA 5/Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Temperature: | 130, 130 deg C |
| Size: | SZ 60 |
| Terminal Type: | Box Lug |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 00662019750101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB DP60C3P-1 Definite Purpose Contactor, 120 VAC V Coil, 60 A, 3NO Contact, 3 Poles
Brand: ABB
Part Number: DP60C3P-1
ABB Definite Purpose Contactor, 120 VAC Coil, 60 A Maximum Load Current, 7/9/59/62 VA Coil, 3 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 60 Size, Box Lug Terminal, NEMA 5/Open Enclosure, 130 deg C Operating, DIN Rail Mounting, 4.15 in H x 2.75 in W x 3.56 in D Dimensions
Additional Description: ABB -DP60C3P-1 DP CONTR,60A,3P,120/60
Catalog Description: DP60C3P-1 DP contactor provide outstanding performance in various HVAC, Food service equipment, refrigeration and welding applications and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
DP60C3P-1 Application
Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, HVAC, Refrigeration Equipment and WeldingDP60C3P-1 Item Features
- Industry standard mounting plate with easy access mounting holes
- Coil terminals are provided with #6-32 screws and (1) 0.25 Quick-connect or dual 0.25 Quick-connect terminals
- Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
- Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
- Double E-magnet assembly provides optimal performance with reduced power consumption
- Base assembly is made from high arc-resistant polyester
- Designed for HVAC and refrigeration equipment operation and control
- 62/59 VA inrush, 9/6 VA closed coil power rating
DP60C3P-1 Standards
UL 508|UL Guide No. NLDX2/NLDX8|UL File No. E224401|C22.2 No. 221260|Class 3211 04/3211 84|CE Certified|Semko Certified|EN60947-4-1:2001|CSA Certified|UL ListedSKU #2287591Part Number #DP60C3P-1UNSPSC39121529UPC00662019750101
