Brand: ABB

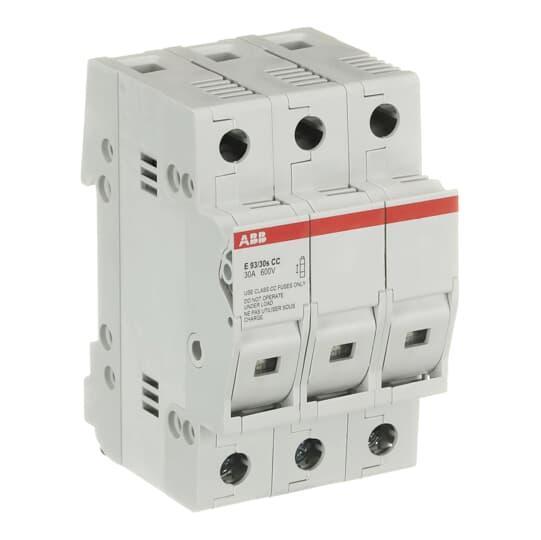

ABB E93/30SCC E90CC Fuse Holder, 600 VAC/VDC, 30 A, 3 W Power Rating, 10 to 16 AWG Wire, 3 Poles
Part Number # E93/30SCC
SKU # 2287418
$27.73 / Each
ABB E93/30SCC Key Features
Brand: ABB
Part Number # E93/30SCC
SKU #2287418
Amperage Rating: 30, 30 A
Class: CC, Class CC
Dimensions: 85 mm H x 105 mm W x 64 mm D
Fuse Length: 38.1, 38.1 mm
Number of Phases: 3 ph
Number of Poles: 3
Power Rating: 3, 3 W
Series: E90CC
Suitable For Use With: Class CC Fuse
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 10 to 16 AWG, 16 to 10
Mounting type: DIN Rail
Manufacturer Name: ABB
UNSPSC: 39121624
UPC: 08012542999423
$27.73 / Each
- ABB, E93/30SCC, Fuse Holder, Series: E90CC, 600 VAC/VDC, 30 A, 3 W Power, 3 Pole, 3 pH ph, Class: Class CC, 10 to 16 AWG Wire, DIN Rail Mounting, 38.1 mm Fuse Length, 85 mm H x 105 mm W x 64 mm D Dimensions
E93/30SCC Specifications
- IP20 deg of protection
- 60 Hz frequency rating
- Short-circuit rating of 200 kA
E93/30SCC Application
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC, also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuitsE93/30SCC Item Features
- E 93/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
E93/30SCC Standards
CSA|cUL|CE|GOSTSKU #2287418Part Number #E93/30SCCUNSPSC39121624UPC08012542999423
