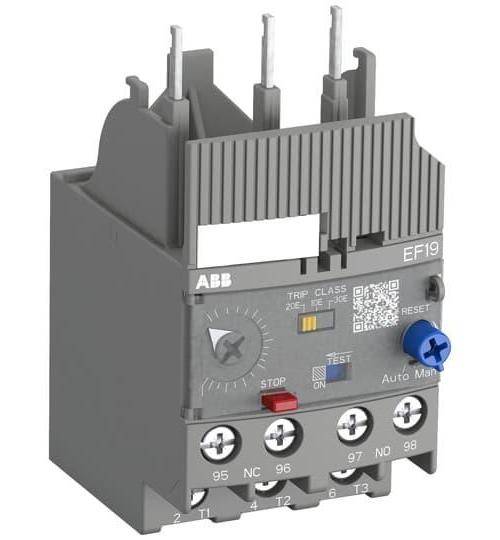

ABB EF19-6.3 Electronic Overload Relay

2228924 MFG #: EF19-6.3
$86.78 / EA
1 In Stock &nbsp; Ships In<strong>1 Business Day</strong>
  • Amperage Rating: 1.9 to 6.3, 1.9 to 6.3 A
  • Contact Form: 1NC-1NO, 1NO-1NC
  • Contact Rating: 6.3 A at 690 VAC
  • Dimensions: 85 mm H x 44.4 mm W x 59.3 mm D
  • Enclosure Type: IP20
  • Frequency Rating: 50/60, 50/60 Hz
  • Number of Poles: 3
  • Series: EF19
  • Temperature Rating (Degrees F): -25 to 70, -25 to 70 deg C
  • Terminal Type: Threaded

ABB EF19-6.3 Electronic Overload Relay

ABB Electronic Overload Relay, Series: EF19, 1.9 to 6.3 A, 50/60 Hz Frequency, 1NC-1NO Contact Form, 6.3 A at 690 VAC Contact, 3 Pole, Threaded Terminal, IP20 Enclosure, -25 to 70 deg C, 85 mm H x 44.4 mm W x 59.3 mm D Dimensions

Additional Description: ABB -EF19-6.3 ELEC O/L 1.9-6.3A, CLASS 10, 20, 3

Catalog Description: The EF19-0.32 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory.The EF19 and EF45 have ATEX and IECEx certification 1)1) ATEX is valid for products produced from week 42, 2014.IECEx is valid for products produced from week 15, 2017.

QTY
  • Item Features
  • Flexible overload protection
  • Motor applications up to 1250 A
  • Automatic or manual reset selectable
  • RESET, TEST and stop functions
  • 10E, 20E, 30E trip class
  • Direct contactor mounting up to 320 A
  • 600 VAC/VDC auxiliary circuit
