Part Number # EHDB220C-AL11S
SKU # 2209752
Image Disclaimers Message
EHDB220C-AL11S

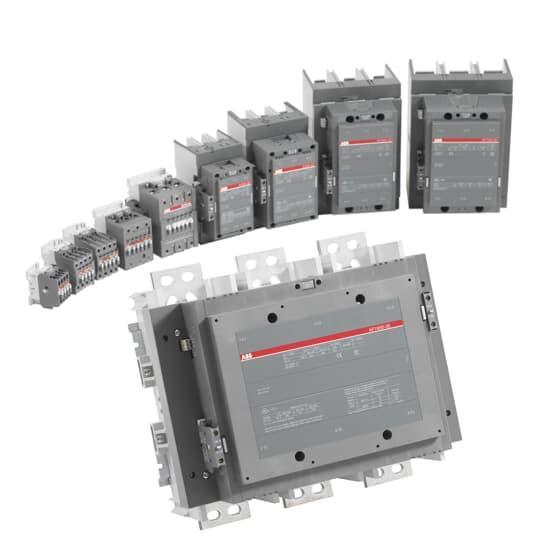

ABB EHDB220C-AL11S Drive Contactor
Part Number # EHDB220C-AL11S
SKU # 2209752
$3691.72 / Each
ABB EHDB220C-AL11S Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | EHDB220C-AL11S |
| SKU #: | 2209752 |
| Coil Power Rating: | 60 hp, 125 hp, 150 hp |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Configuration: | 2NO-2NC |
| Contact Rating: | 330 A at 600 V |
| Dimensions: | 5.83 in W x 6.65 in D x 7.79 in H |
| Frequency Rating: | 60, 60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | EHDB |
| Terminal Type: | Screw |
| Wattage: | 900 VA Inrush/25 VA Holding |
| Country of origin: | SE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500356326 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3691.72 / Each
Quantity:
- ABB Drive Contactor, Series: EHDB, 120 V AC Coil, 220 A Maximum Load Current, 60 hp, 125 hp, 150 hp Coil, 3 Pole, 60 Hz Frequency, 900 VA Inrush/25 VA Holding Wattage, Double Break Contact, 2NO-2NC Contact Configuration, 1NO-1NC Auxiliary Contacts, 330 A at 600 V Contact, Screw Terminal, -40 to 70 deg C Operating, DIN Rail Mounting, 5.83 in W x 6.65 in D x 7.79 in H Dimensions
EHDB220C-AL11S Application
For use with solid state DC adjustable speed drive systemsEHDB220C-AL11S Item Features
- 60 hp at 240 VDC, 125 hp at 500 VDC, 150 hp at 600 VDC
- 330 A at 600 V make/165 at 300 V 165 break NC contact
SKU #2209752Part Number #EHDB220C-AL11SUNSPSC39121529UPC07320500356326
