Part Number # EHDB280C-1L
SKU # 2192833
Image Disclaimers Message
EHDB280C-1L

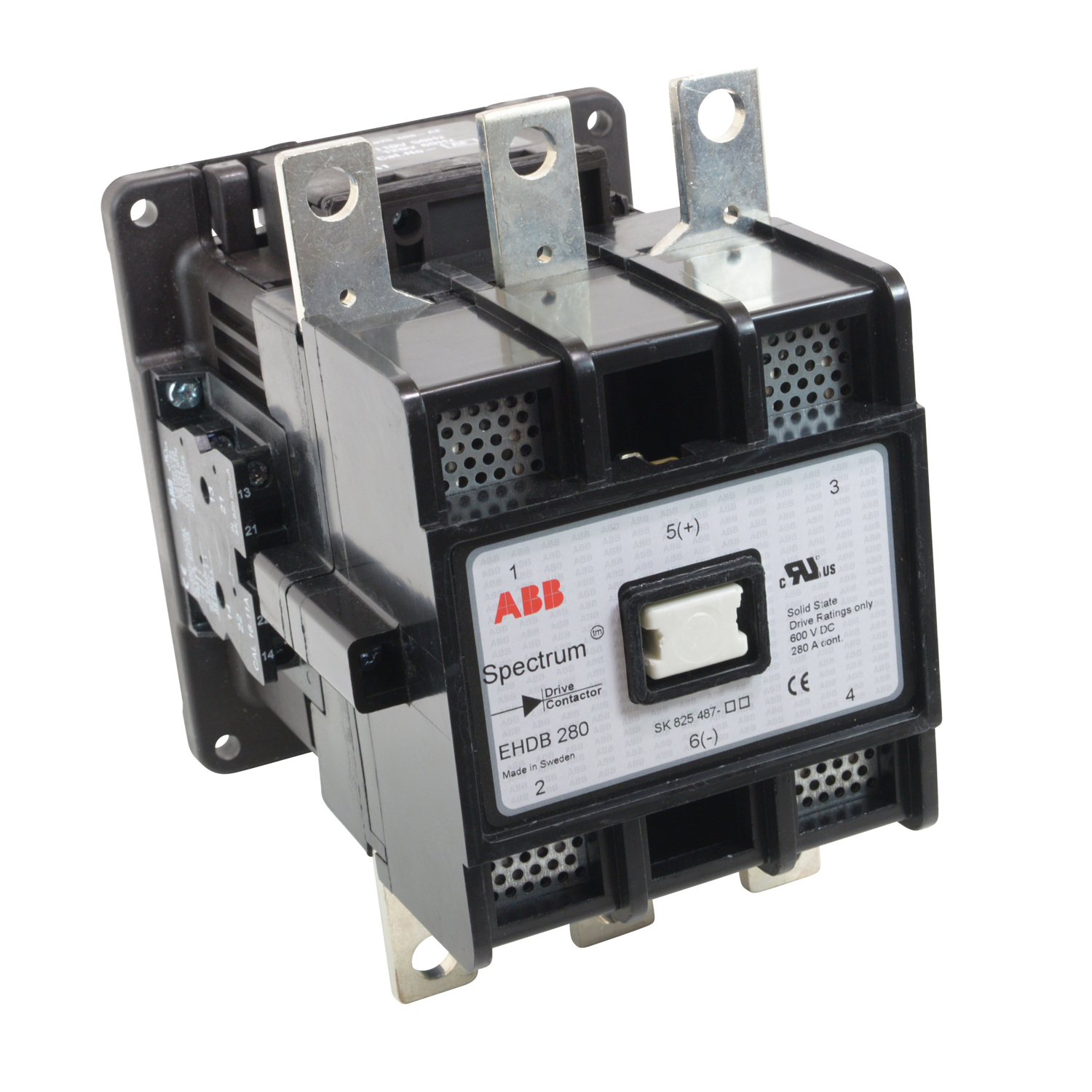

ABB EHDB280C-1L Contactor
Part Number # EHDB280C-1L
SKU # 2192833
$4321.38 / Each
ABB EHDB280C-1L Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | EHDB280C-1L |
| SKU #: | 2192833 |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Configuration: | 2NO-1NC |
| Dimensions: | 7.79 in H x 5.83 in W x 6.65 in D, 7.79 in L x 5.83 in W x 6.65 in H |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC, 2NO-1NC/1NO-1NC |
| Number of Poles: | 3 |
| Series: | EHDB |
| Terminal Type: | Box Lug |
| Type: | Dynamic Breaking Magnetic, Dynamic Breaking Magnetic Non-Reversing, Dynamic Breaking Non-Reversing |
| Country of origin: | SE |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500073537 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4321.38 / Each
Quantity:
- ABB, EHDB280C-1L, Contactor, Dynamic Breaking Magnetic Non-Reversing, Series: EHDB, 120 V AC Coil, 80 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, Non-Reversing Contact, 2NO-1NC Contact Configuration, 2NO-1NC/1NO-1NC Auxiliary Contacts, Box Lug Terminal, DIN Rail/Panel Mounting, 7.79 in H x 5.83 in W x 6.65 in D Dimensions
EHDB280C-1L Application
For use with solid state DC adjustable speed drive systemsEHDB280C-1L Standards
RoHs, CSA, cUL, CE, GOSTSKU #2192833Part Number #EHDB280C-1LUNSPSC39121529UPC07320500073537
