Part Number # EHDB360C2P-1L
SKU # 2209480

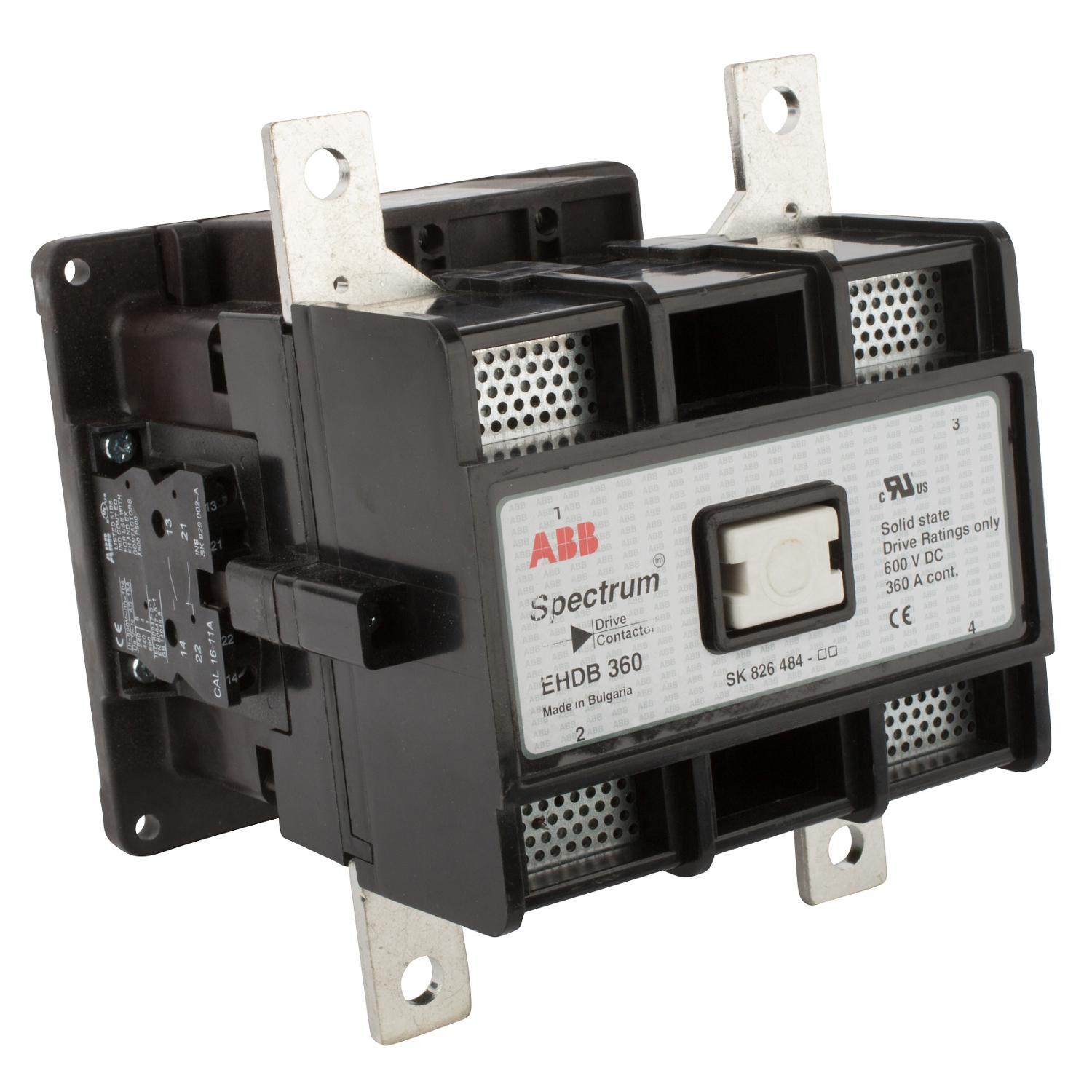

Image provided may only be a representation of
final product and may include optional equipment
EHDB360C2P-1L
ABB EHDB360C2P-1L Drive Contactor
Part Number # EHDB360C2P-1L
SKU # 2209480
ABB EHDB360C2P-1L Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | EHDB360C2P-1L |
| SKU #: | 2209480 |
| Coil Power Rating: | 100 hp, 200 hp, 250 hp |
| Coil Voltage: | 120, 120 V AC, 120 VAC |
| Contact Configuration: | 2NO |
| Contact Rating: | 525 A at 600 V |
| Dimensions: | 6.92 in W x 6.88 in D x 8.14 in H |
| Frequency Rating: | 60, 60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 2 |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | EHDB |
| Terminal Type: | Screw |
| Wattage: | 1200 VA Inrush/70 VA Holding |
| Country of origin: | SE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500073483 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB EHDB360C2P-1L Drive Contactor
Brand: ABB
Part Number: EHDB360C2P-1L
ABB Drive Contactor, Series: EHDB, 120 VAC Coil, 360 A Maximum Load Current, 100 hp, 200 hp, 250 hp Coil, 2 Pole, 60 Hz Frequency, 1200 VA Inrush/70 VA Holding Wattage, Double Break Contact, 2NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 525 A at 600 V Contact, Screw Terminal, -40 to 70 deg C Operating, DIN Rail Mounting, 6.92 in W x 6.88 in D x 8.14 in H Dimensions
Additional Description: ABB -EHDB360C2P-1L 2P DRIVE CONTR.360A,120/60,L/T
Catalog Description: 2 pole, 2 NO, plus 1 NO and 1 NC auxiliary contacts, 360 amp, DC drive, dynamic breaking contactor, with a 120V AC coil
EHDB360C2P-1L Application
For use with solid state DC adjustable speed drive systemsEHDB360C2P-1L Item Features
- 100 hp at 240 VDC, 200 hp at 500 VDC, 250 hp at 600 VDC
- 525 A at 600 V make/263 at 300 V 165 break NC contact
