Part Number # EHDB960C-1L
SKU # 2380336
Image Disclaimers Message
Brand: ABB
EHDB960C-1L

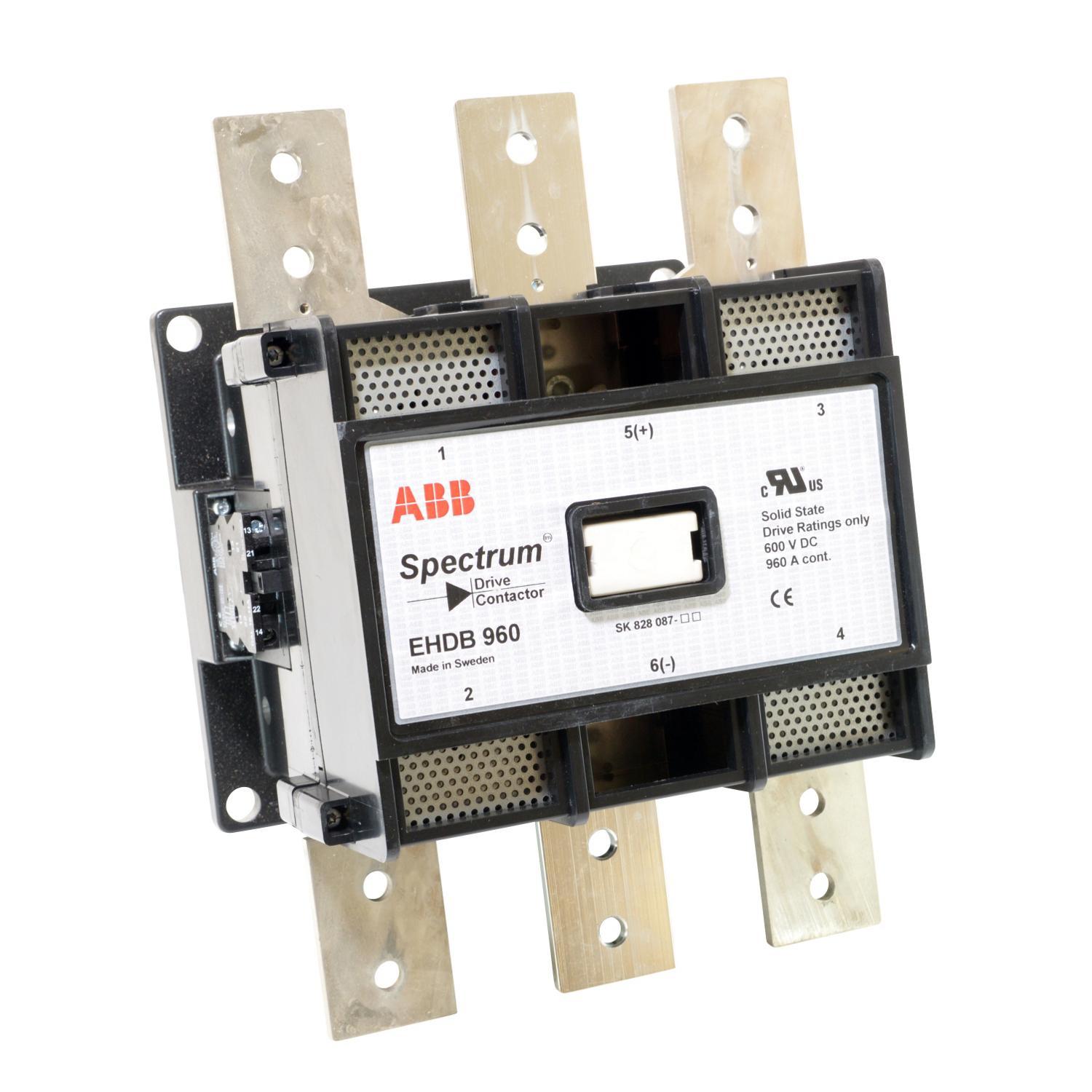

ABB EHDB960C-1L Drive Contactor
Part Number # EHDB960C-1L
SKU # 2380336
$24611.48 / Each
ABB EHDB960C-1L Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | EHDB960C-1L |
| SKU #: | 2380336 |
| Coil Power Rating: | 600 hp, 700 hp |
| Coil Voltage: | 120 VAC |
| Contact Configuration: | 2NO-1NC |
| Contact Rating: | 1440 A at 600 V |
| Dimensions: | 9.96 in W x 8.9 in D x 11.57 in H |
| Frequency Rating: | 60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Temperature: | -40 to 70 deg C |
| Series: | EHDB |
| Terminal Type: | Screw |
| Wattage: | 4000 VA Inrush/140 VA Holding |
| Country of origin: | SE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500115053 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$24611.48 / Each
Quantity:
- ABB Drive Contactor, Series: EHDB, 120 VAC Coil, 960 A Maximum Load Current, 600 hp, 700 hp Coil, 3 Pole, 60 Hz Frequency, 4000 VA Inrush/140 VA Holding Wattage, Double Break Contact, 2NO-1NC Contact Configuration, 1NO-1NC Auxiliary Contacts, 1440 A at 600 V Contact, Screw Terminal, -40 to 70 deg C Operating, DIN Rail Mounting, 9.96 in W x 8.9 in D x 11.57 in H Dimensions
EHDB960C-1L Application
For use with solid state DC adjustable speed drive systemsEHDB960C-1L Item Features
- Double-break contacts with magnetic arc chutes
- 600 hp at 500 VDC, 700 hp at 600 VDC
- 1440 A at 600 V make/720 at 300 V 165 break NC contact
EHDB960C-1L Standards
RoHs, CSA, cUL, CE, GOSTSKU #2380336Part Number #EHDB960C-1LUNSPSC39121529UPC07320500115053
